Kia Picanto: Driver assistance guide / Rear Cross-Traffic Collision-Avoidance Assist (RCCA): (if equipped)

Kia Picanto 2024-2026 Owner's Manual / Driver assistance guide / Rear Cross-Traffic Collision-Avoidance Assist (RCCA): (if equipped)

When the Kia Picanto is reversing, Rear Cross-Traffic Collision-Avoidance Assist monitors for vehicles approaching from the left or right behind the vehicle. If it detects a possible collision, it can issue a message and audible warning. The system may also assist with braking to help avoid a collision.

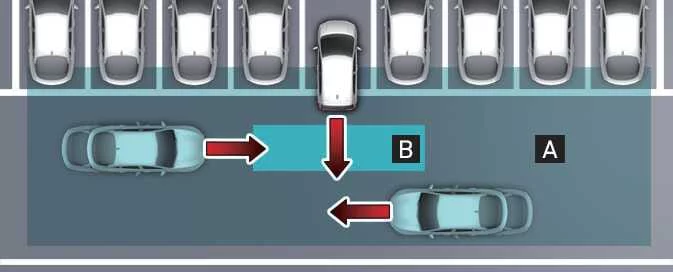

Kia Picanto rear cross-traffic warning and collision-avoidance operating areas

A: Rear Cross-Traffic Collision Warning operating range

B: Rear Cross-Traffic Collision-Avoidance Assist operating range

CAUTION

Warning timing may change according to the speed of the vehicle approaching from the side.

Detecting sensor

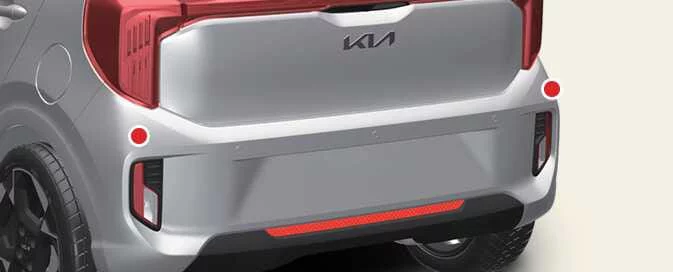

Figure 1. Rear corner radar

Rear corner radar sensor used by Rear Cross-Traffic Collision-Avoidance Assist on the Kia Picanto

The illustration above shows the location of the detecting sensors.

NOTE

For precautions concerning the rear corner radar sensors, refer to the section on Blind-Spot Collision-Avoidance Assist (BCA).
