Ford Explorer: Front Disc Brake / Removal and Installation - Brake Disc Shield
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the brake disc.
Refer to: Brake Disc (206-03 Front Disc Brake, Removal and Installation).
-

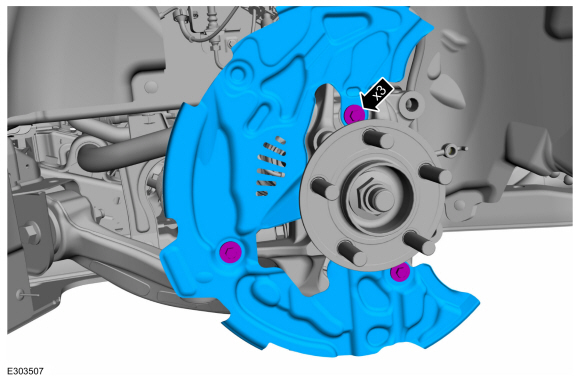

Remove the 3 bolts and the brake disc shield.
Torque:
80 lb.in (9 Nm)
Installation
-
To install, reverse the removal procedure.
Materials
Name
Specification
Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B
-
Removal
WARNING:
Service actions on vehicles equipped with electronic brake
..
Special Tool(s) /
General Equipment
12” / 300mm C-Clamp
Materials
Name
Specification
Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B
-
Removal
WARNI..
