Ford Explorer: Front Disc Brake / Removal and Installation - Brake Disc

Ford Explorer 2020-2024 Service Manual / Chassis / Brake System / Front Disc Brake / Removal and Installation - Brake Disc

Materials

Name Specification
Motorcraft® Metal Brake Parts Cleaner
PM-4-A, PM-4-B
-


Removal

  WARNING: Service actions on vehicles equipped with electronic brake booster and electronic parking brakes may cause unexpected brake application, which could result in injury to hands or fingers. Put the brake system into service mode prior to servicing or removing any brake components. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

  1. Activate the brake service mode.
    Refer to: Brake Service Mode Activation and Deactivation (206-00 Brake System - General Information, General Procedures).
  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
  1. NOTICE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

    NOTICE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Remove the anchor plate bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.
    Torque: 129 lb.ft (175 Nm)
  1. Remove the brake disc.

Installation

NOTE: Make sure that the mating faces are clean and free of foreign material.

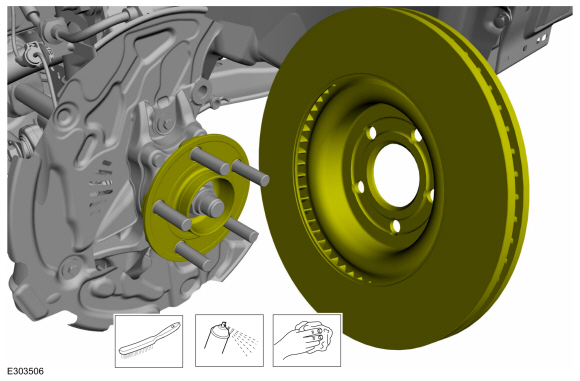

  1. Clean the brake disc mating surfaces using a wire brush and the specified material.
    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
  1. NOTICE: Make sure that the brake hose is not twisted when installing the brake caliper or damage to the brake flexible hose may occur.

    To install, reverse the removal procedure.
  1. Deactivate the brake service mode.
    Refer to: Brake Service Mode Activation and Deactivation (206-00 Brake System - General Information, General Procedures).
  1. Apply the brake pedal several times to verify correct brake system operation.

    Removal and Installation - Brake Caliper Anchor Plate

    Removal NOTE: Removal steps in this procedure may contain installation details. Remove the brake pads. Refer to: Brake Pads (206-03 Front Disc Brake, Removal and Installation)...

    Removal and Installation - Brake Disc Shield

    Removal NOTE: Removal steps in this procedure may contain installation details. Remove the brake disc. Refer to: Brake Disc (206-03 Front Disc Brake, Removal and Installation)...
