Ford Explorer: Pedestrian Alert System / Removal and Installation - Pedestrian Alert Control Module (PACM)

Ford Explorer 2020-2025 Service Manual / Electrical / Instrumentation and Warning Systems / Pedestrian Alert System / Removal and Installation - Pedestrian Alert Control Module (PACM)

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

  1. Remove the luggage compartment floor cover.

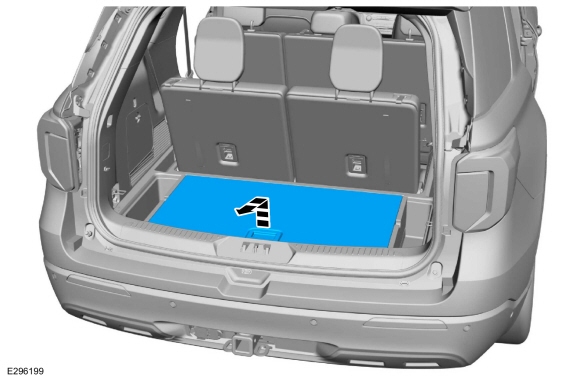

  1. Remove the luggage compartment storage bin.
    • If equipped.

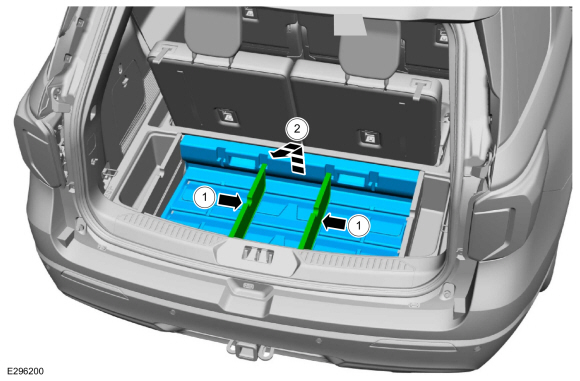

      Remove the luggage compartment storage bin dividers.
    • Remove the luggage compartment storage bin.
  1. NOTE: Third row seats removed for clarity.

    NOTE: Pin-type retainers are located in the rear bin floor of the loadspace armrest trim panel.

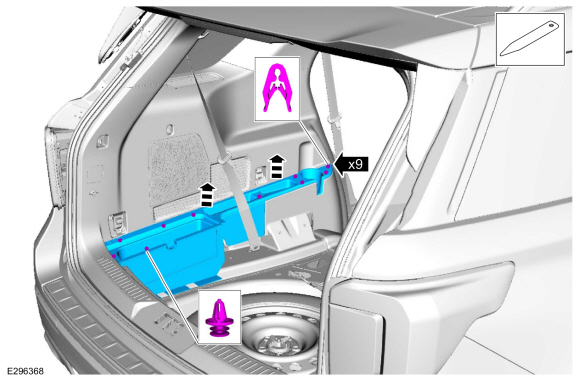

    Release the clips and pin-type retainers and remove the loadspace armrest trim panel.
    Use the General Equipment: Interior Trim Remover

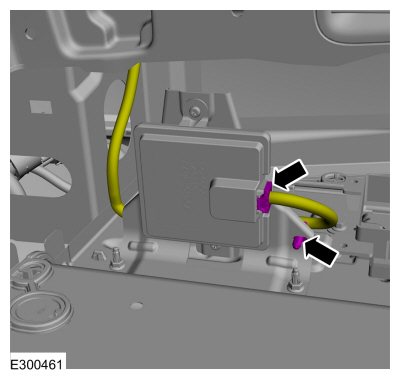

  1. Disconnect the electrical connectors and position the wiring harness aside.

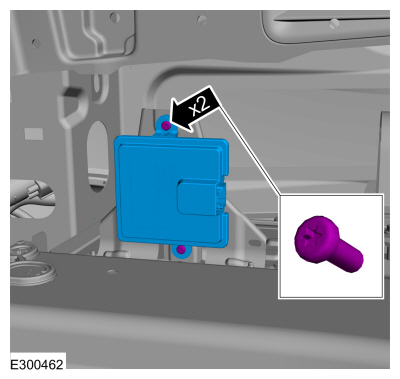

  1. Remove the screws and the PACM.

Installation

  1. To install, reverse the removal procedure.
