Ford Explorer: Climate Control System - General Information / Removal and Installation - Passenger Temperature Door Actuator

Ford Explorer 2020-2023 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Removal and Installation - Passenger Temperature Door Actuator

Removal

  1. Remove the glove compartment.
    Refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).

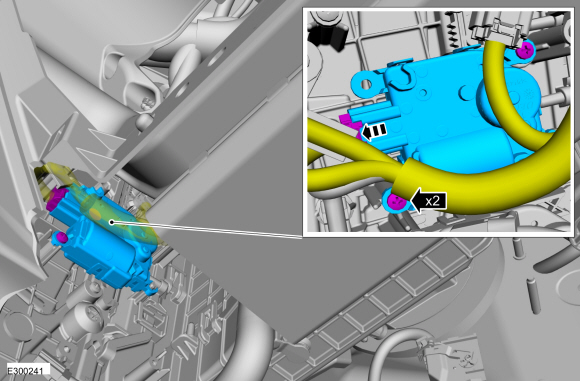

  1. Remove the screws and the passenger tempreature door actuator.
    • Disconnect the electrical connector.

Installation

  1. To install, reverse the removal procedure.
