Removal

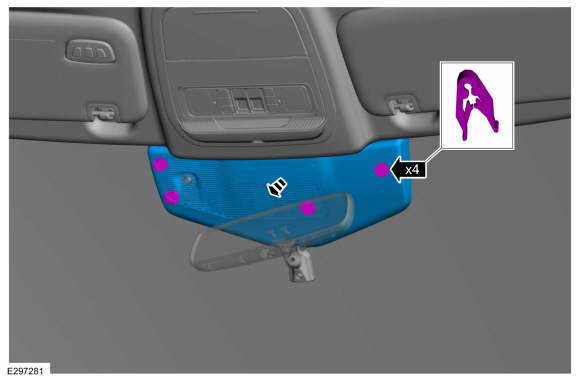

  1. Release the clips and remove the IPMA cover.

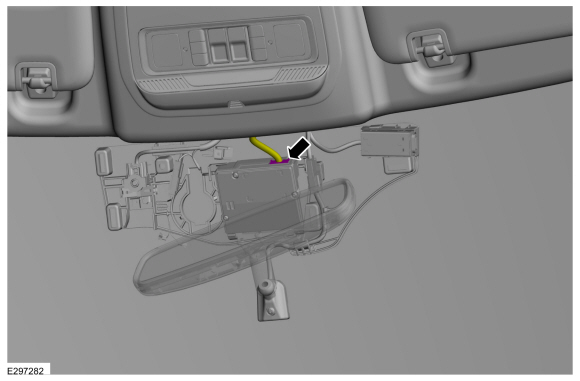

  1. Disconnect the electrical connector.

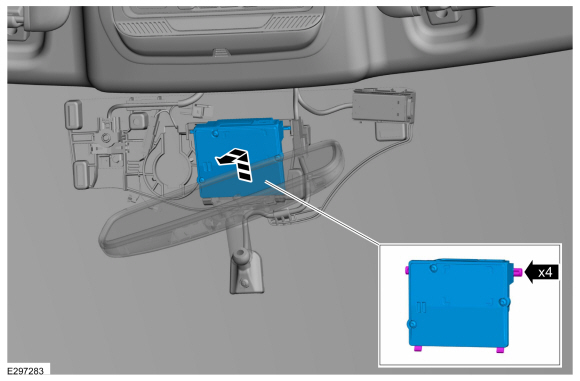

  1. Release the tabs and remove the IPMA.

Installation

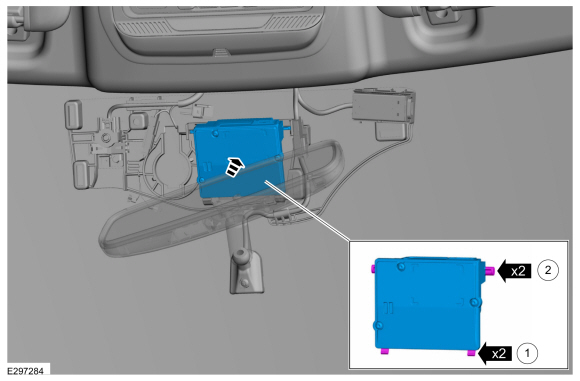

  1. Install the IPMA
    1. Install the lower tabs.
    1. Install the upper tabs.
  1. To install, reverse the removal procedure.

    • If a new IPMA has been installed, using a diagnostic scan tool, complete the PMI process for the IPMA following the on-screen instructions.
    • If a new IPMA has been installed, carry out the camera alignment using a scan tool.

    Diagnosis and Testing - Lane Keeping System

    Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Informati..

    Multifunction Electronic Modules

    ..
