Ford Explorer: Police Equipment / Removal and Installation - High Mounted Flashing Light Emitting Diode (LED) Lamps

Ford Explorer 2020-2022 Service Manual / General Service Information / Police Equipment / Removal and Installation - High Mounted Flashing Light Emitting Diode (LED) Lamps

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH is similar.

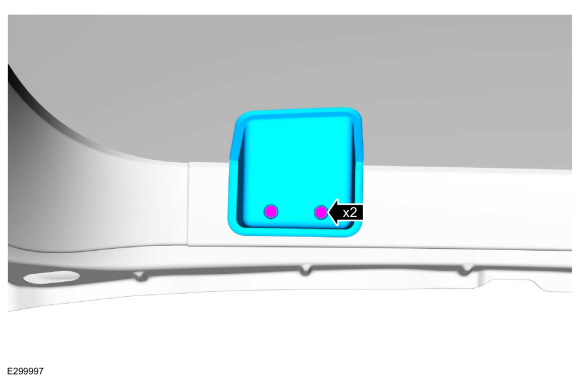

Remove the screws and the trim cover.
Torque: 20 lb.in (2.3 Nm)

Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

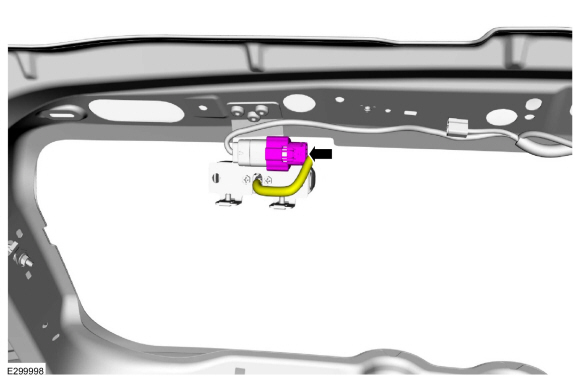

Disconnect the electrical connector.

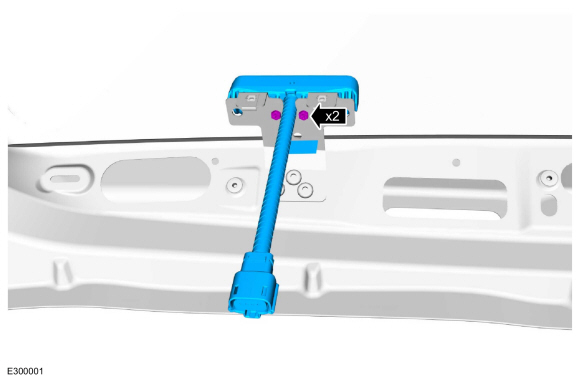

Remove the screws and the high mounted flashing LED lamp.
Torque: 19 lb.in (2.2 Nm)

Installation

To install, reverse the removal procedure.
