Ford Explorer: Police Equipment / Removal and Installation - Headliner Mounted Front Flashing Light Emitting Diode (LED) Lamps

Ford Explorer 2020-2022 Service Manual / General Service Information / Police Equipment / Removal and Installation - Headliner Mounted Front Flashing Light Emitting Diode (LED) Lamps

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH is similar.

Lower the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).

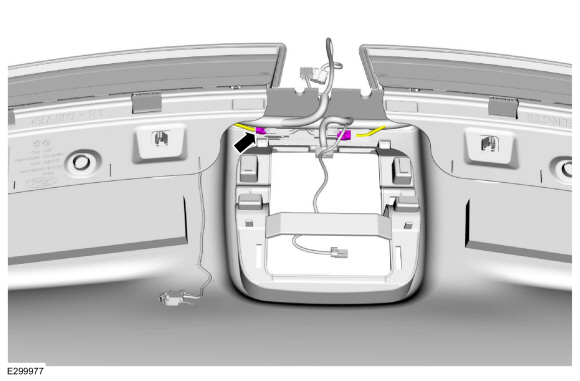

Disconnect the headliner mounted front flashing LED lamp electrical connector.

Remove the headliner mounted front flashing LED lamp.

Installation

To install, reverse the removal procedure.
