Removal

Remove the charge air cooler outlet tube.
Refer to: Charge Air Cooler (CAC) Outlet Pipe (303-12A Intake Air Distribution and Filtering - 2.3L EcoBoost (201kW/273PS), Removal and Installation).

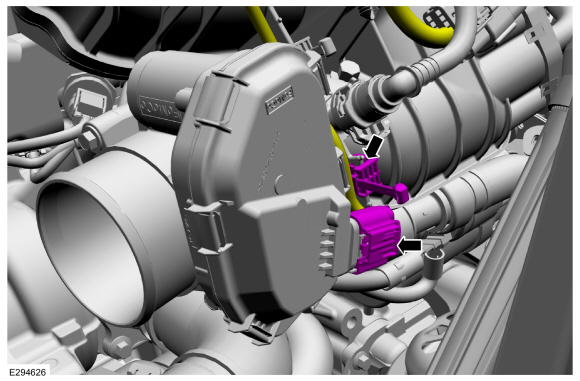

Disconnect the wire harness retainer, then disconnect the throttle body electrical connector.

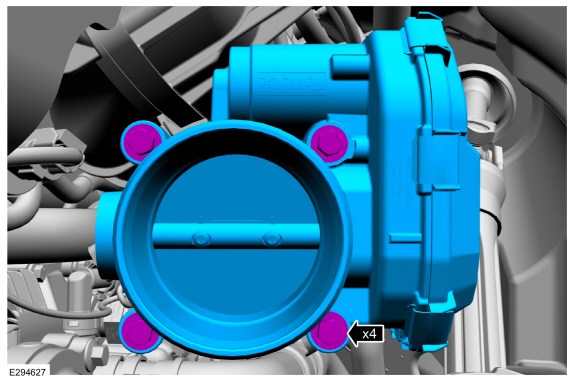

Remove the throttle body bolts, then remove the throttle body.

Installation

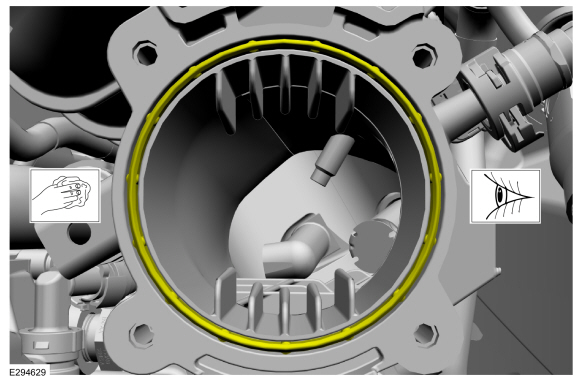

Inspect the throttle body gasket, clean or replace as needed. Clean the mating surfaces.

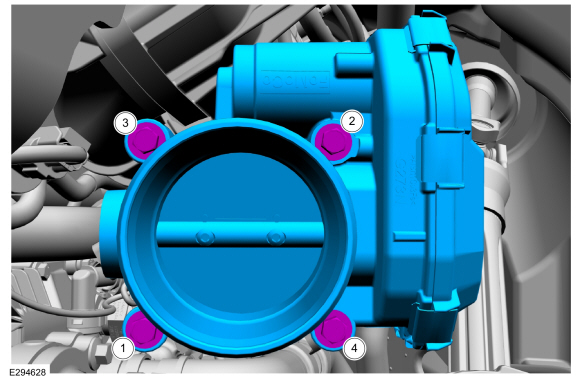

Install the throttle body, then install and tighten the bolts in the following 2 stages, in the sequence shown.
Torque:
Tighten to: : 44 lb.in (5 Nm)
Re-tighten to: : 89 lb.in (10 Nm)

Connect the throttle body electrical connector, then connect the wire harness retainer.

Install the charge air cooler outlet tube.
Refer to: Charge Air Cooler (CAC) Outlet Pipe (303-12A Intake Air Distribution and Filtering - 2.3L EcoBoost (201kW/273PS), Removal and Installation).
