Removal

  1. NOTE: If installing a new PAM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new PAM after installation.

    Using a diagnostic scan tool, begin the PMI process for the PAM following the onscreen instructions.
  1. Remove the front scuff plate trim panel.
    Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

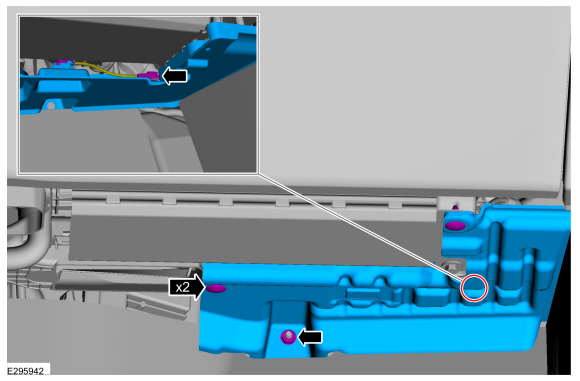

    • Remove the pin-type retainers, the nut and the RH (right-hand) insulation panel.
    • Disconnect the electrical connector.

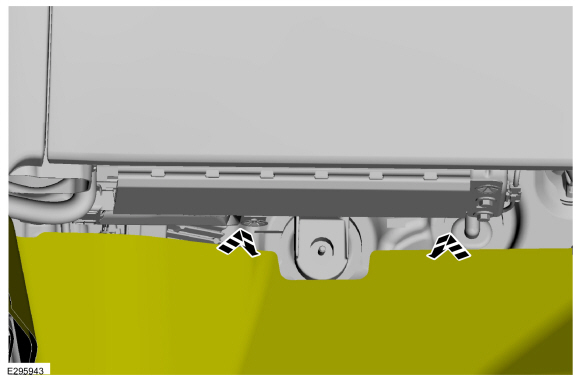

  1. Position the carpet for access.

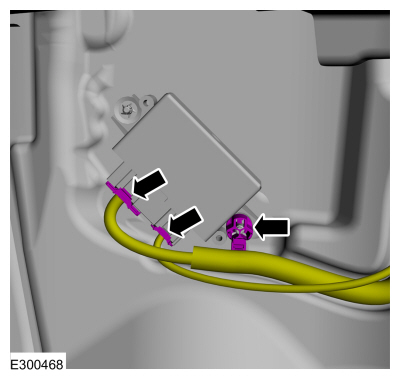

  1. Disconnect the electrical connectors, separate the wiring guide and position the wiring harness aside.

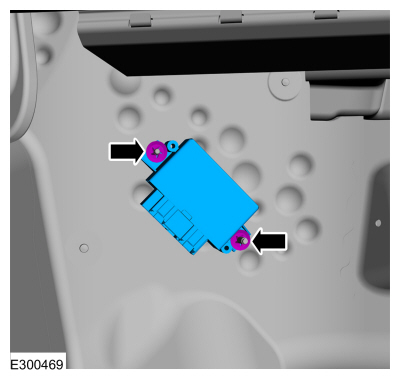

  1. Remove the fasteners and the PAM.
    Torque: 7 lb.in (0.8 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the PAM following the on-screen instructions.
