Ford Explorer: Handles, Locks, Latches and Entry Systems / Removal and Installation - Interior Rear Door Handle

Ford Explorer 2020-2022 Service Manual / Body and Paint / Body and Paint / Handles, Locks, Latches and Entry Systems / Removal and Installation - Interior Rear Door Handle

Removal

NOTE: LH (left-hand) side shown, RH (right-hand) side similar.

  1. Remove the rear trim panel.
    Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

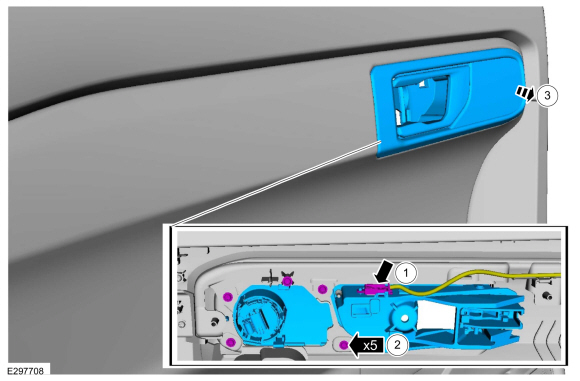

  1. Remove the interior rear door handle.
    1. Disconnect the interior rear door handle electrical connector.
    1. Remove the interior rear door handle screws.
    1. Remove the interior rear door handle.

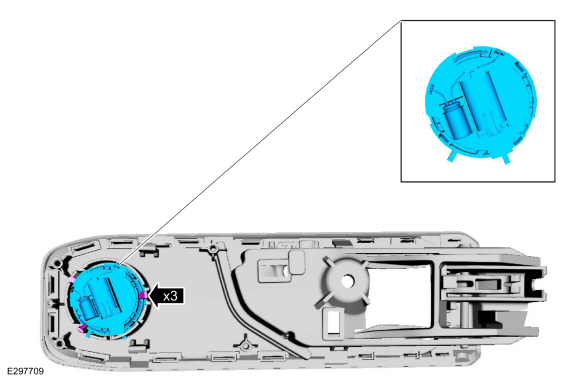

  1. NOTE: This step is only necessary when installing a new component.

    Release the retaining tabs and remove the rear door tweeter speaker.

Installation

  1. To install, reverse the removal procedure.
