Ford Explorer: Front Seats / Removal and Installation - Front Seat Cushion Blower Motor

Ford Explorer 2020-2022 Service Manual / Body and Paint / Body and Paint / Front Seats / Removal and Installation - Front Seat Cushion Blower Motor

Removal

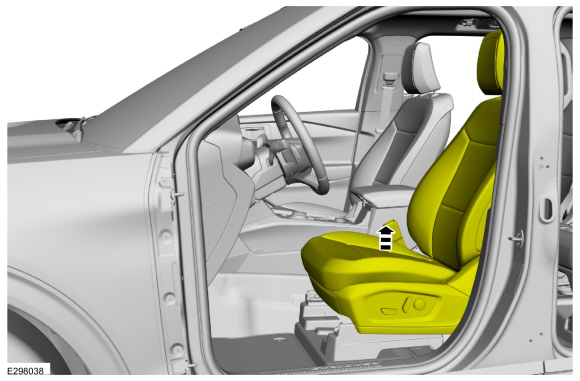

  1. Raise the front seat to its highest point of travel.

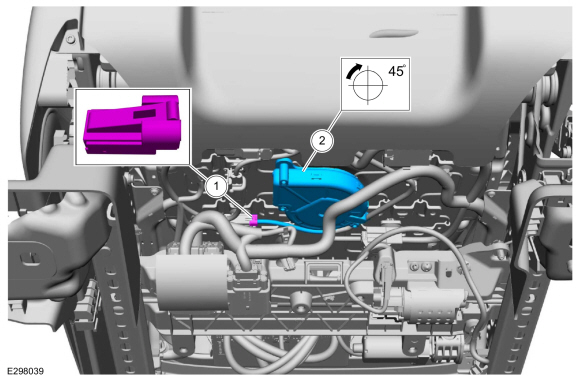

  1. Remove the front seat cushion blower motor.
    1. Disconnect the electrical connector.
    1. Rotate the blower motor 45 degrees clockwise.

Installation

  1. To install, reverse the removal procedure.
