Ford Explorer: Handles, Locks, Latches and Entry Systems / Removal and Installation - Front Door Lock Control Switch

Ford Explorer 2020-2022 Service Manual / Body and Paint / Body and Paint / Handles, Locks, Latches and Entry Systems / Removal and Installation - Front Door Lock Control Switch

Removal

NOTE: LH (left-hand) side shown, RH (right-hand) side similar.

  1. Remove the front door trim panel.
    Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

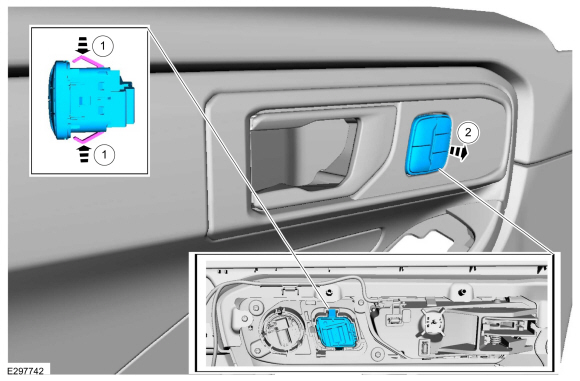

  1. Remove the front door lock control switch.
    1. Release the retaining clips.
    1. Remove the front door lock control switch.

Installation

  1. To install, reverse the removal procedure.
