Ford Explorer: Evaporative Emissions - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Evaporative Emission Canister Vent Solenoid

Ford Explorer 2020-2024 Service Manual / Powertrain / Engine / Evaporative Emissions - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Evaporative Emission Canister Vent Solenoid

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting (100-02) .

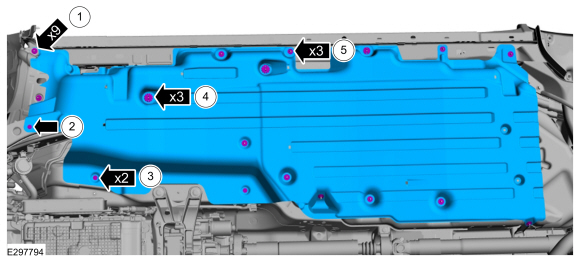

    1. Remove the fasteners.
      Torque: 53 lb.in (6 Nm)
    1. Remove the fasteners.
    1. Remove the fasteners.
      Torque: 53 lb.in (6 Nm)
    1. Remove the push pin.
    1. Remove the fasteners.
      Torque: 53 lb.in (6 Nm)

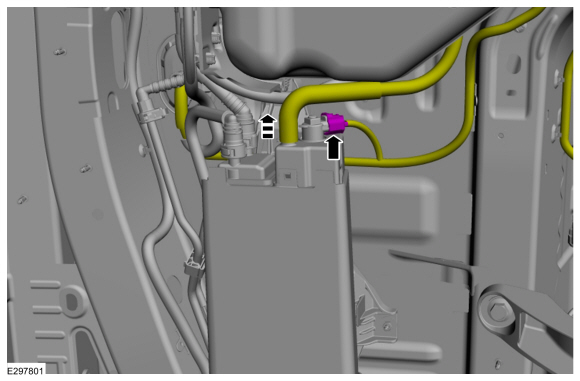

    • Disconnect the EVAP canister electrical connector.
    • Disconnect the vapor vent hose.

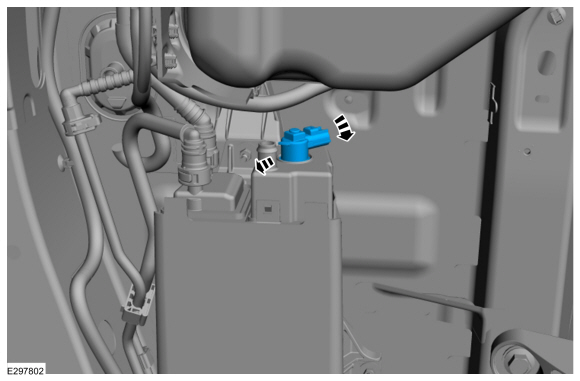

  1. Rotate the EVAP canister solenoid clockwise and remove the EVAP canister solenoid.

Installation

  1. To install, reverse the removal procedure.
