Ford Explorer: Evaporative Emissions - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Evaporative Emission Canister Ventilation Filter
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the EVAP canister vent solenoid.
Refer to: Evaporative Emission Canister Vent Solenoid (303-13A Evaporative Emissions - 2.3L EcoBoost (201kW/273PS), Removal and Installation).
-

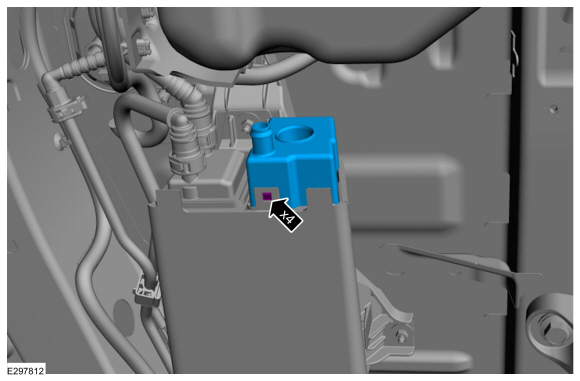

Release the tabs and remove the EVAP canister ventilation filter.
Installation
-
To install, reverse the removal procedure.
