Ford Explorer: Evaporative Emissions - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Fuel Tank Pressure Sensor and Tube
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation steps.
-
Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-
Release the fuel system pressure.
Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 2.3L EcoBoost (201kW/273PS), General Procedures).
-
Drain the fuel tank.
Refer to: Fuel Tank Draining (310-00A Fuel System - General Information - 2.3L EcoBoost (201kW/273PS), General Procedures).
-
Remove the muffler and tailpipe.
Refer to: Muffler and Tailpipe (309-00A Exhaust System - 2.3L EcoBoost (201kW/273PS), Removal and Installation).
-
Remove the drive shaft.
Refer to: Rear Driveshaft (205-01 Driveshaft, Removal and Installation).
-

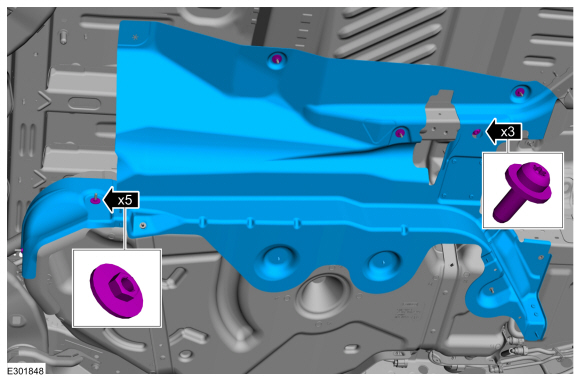

Remove the retainers and position the air deflector aside.
-
-
Remove the nuts.
Torque:
89 lb.in (10 Nm)
-
Remove the bolts.
Torque:
22 lb.ft (30 Nm)
-

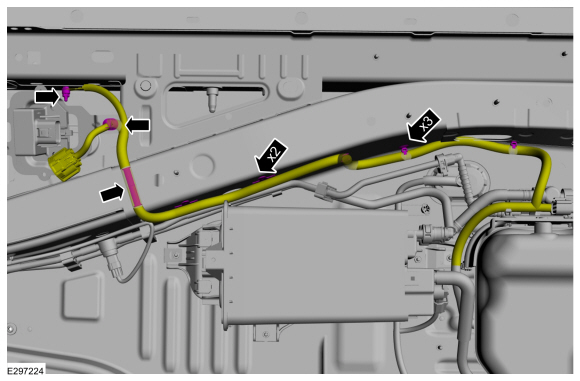

Remove the bolt and detach the retainer clips. Position the wiring harness aside.
Torque:
106 lb.in (12 Nm)
-

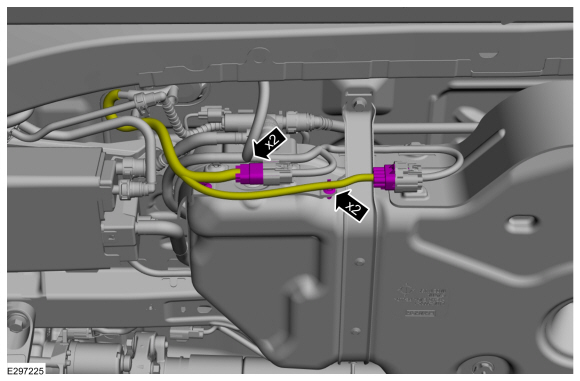

Disconnect the electrical connectors.
-

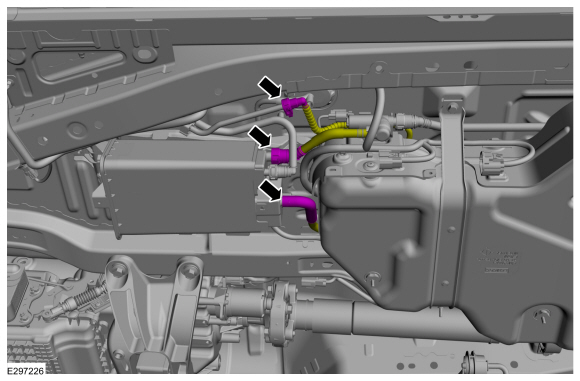

Remove the quick release couplings and fresh air tube from the canister.
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 2.3L EcoBoost (201kW/273PS), General Procedures).
-
Remove the quick release couplings.
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 2.3L EcoBoost (201kW/273PS), General Procedures).
-

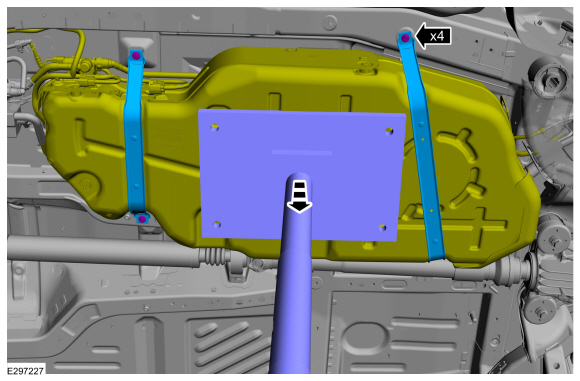

Remove the bolts and the fuel tank.
Use the General Equipment: Transmission Jack
Torque:
35 lb.ft (47 Nm)
-
-

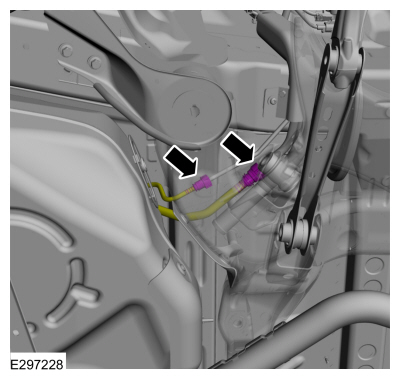

Disconnect the electical connector and quick release coupling.
-

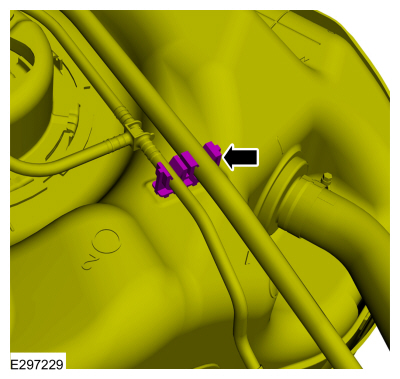

Detach the clip and postion the fuel outlet hose aside.
-

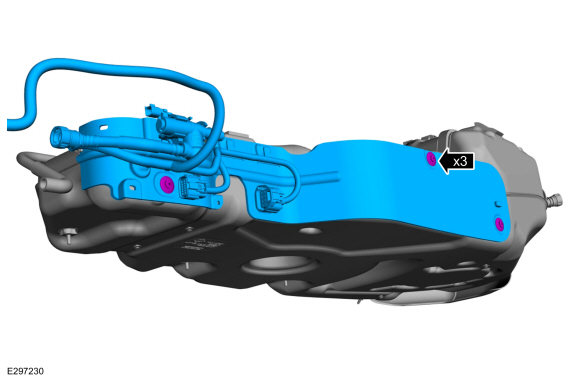

Remove the push pin retainers and the fuel tank shield.
-

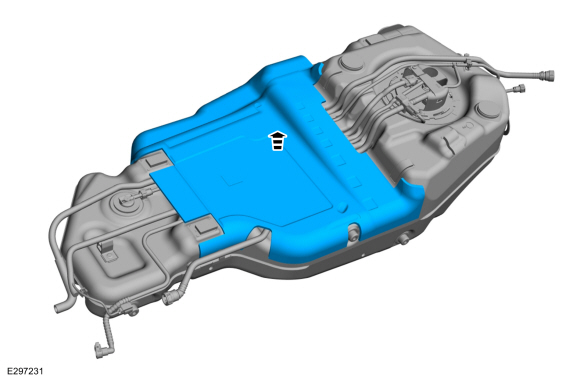

Remove the fuel tank insulator.
-
-
Disconnect the electrical connector.
-

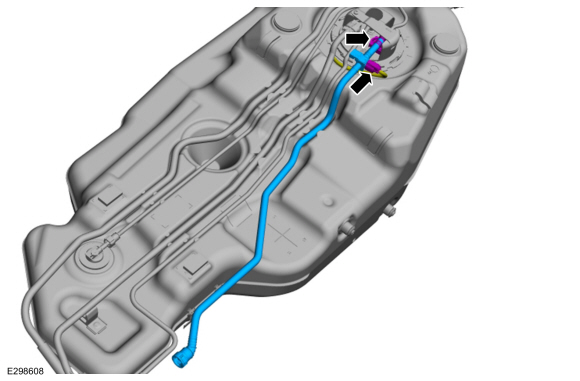

Disconnect the quick release coupling and remove the fuel tank pressure sensor and tube.
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 2.3L EcoBoost (201kW/273PS), General Procedures).
Installation
-
To install, reverse the removal procedure.
