Ford Explorer: Voltage Converter/Inverter / Removal and Installation - Alternating Current (AC) Power Outlet Socket

Ford Explorer 2020-2022 Service Manual / Electrical / Battery and Charging System / Voltage Converter/Inverter / Removal and Installation - Alternating Current (AC) Power Outlet Socket

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

  WARNING: Disconnect the 12 volt battery before servicing the direct current to alternating current (DC-AC) inverter or alternating current (AC) powerpoint to prevent the risk of high voltage shock. Failure to follow this instruction may result in serious personal injury.

  1. Disconnect the negative battery cable from the battery.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

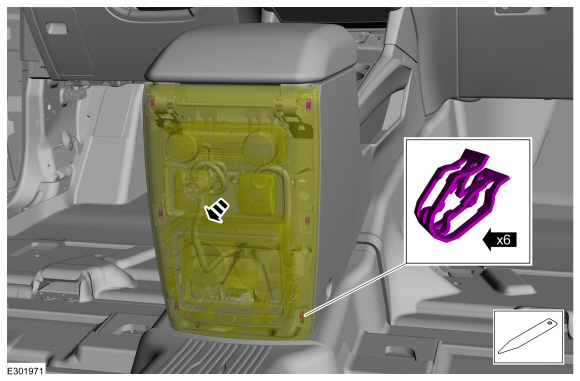

  1. Release the clips and position the floor console rear trim panel out.
    Use the General Equipment: Interior Trim Remover

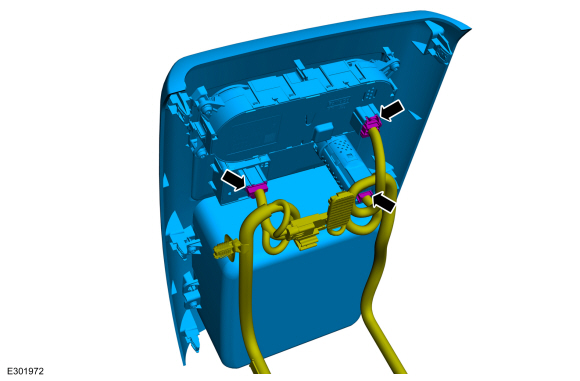

  1. Disconnect the electrical connectors and remove the floor console rear trim panel.

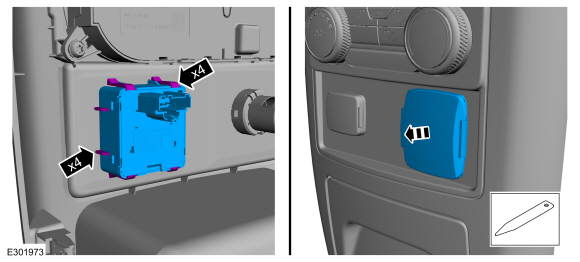

  1. Press the retainers inward and remove the AC power outlet socket.
    Use the General Equipment: Interior Trim Remover

Installation

  1. To install, reverse the removal procedure.
