Removal

WARNING: Disconnect the 12 volt battery before servicing the direct current to alternating current (DC-AC) inverter or alternating current (AC) powerpoint to prevent the risk of high voltage shock. Failure to follow this instruction may result in serious personal injury.

Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

Remove the retainers and the drivers side lower insulation panel.

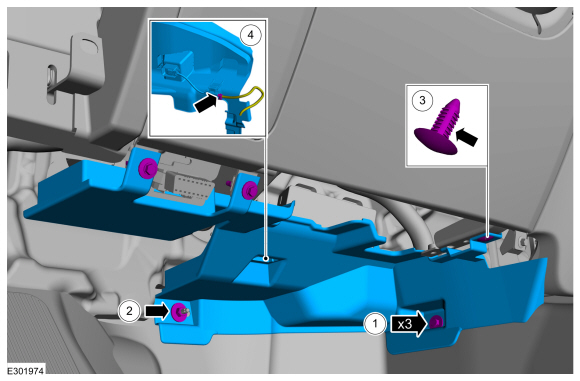

1. Remove the bolts.
  Torque: 27 lb.in (3 Nm)
1. Remove the nut and the push pin.
  Torque: 27 lb.in (3 Nm)
1. Disconnect the electrical connector.

Disconnect the electrical connector.

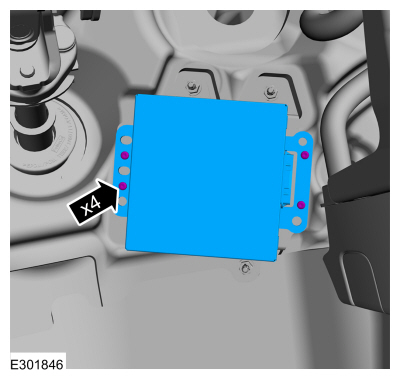

Remove the screws and the Direct Current/Alternating Current (DC/AC) inverter.

IPTV Free Trial

Installation

To install, reverse the removal procedure.
