Ford Explorer: Transfer Case / General Procedures - Transfer Case Fluid Level Check

Ford Explorer 2020-2025 Service Manual / Powertrain / Automatic Transmission / Transfer Case / General Procedures - Transfer Case Fluid Level Check

Check

  1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. NOTE: Make sure that the vehicle is standing on a level surface.

    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Check the component for leaks.
  1. Transfer case Fluid Level Check should only be carried out if an oil leak was identified.
  1. NOTICE: Only use the specified lubricant.

    NOTE: The transfer case should be in in-vehicle position.

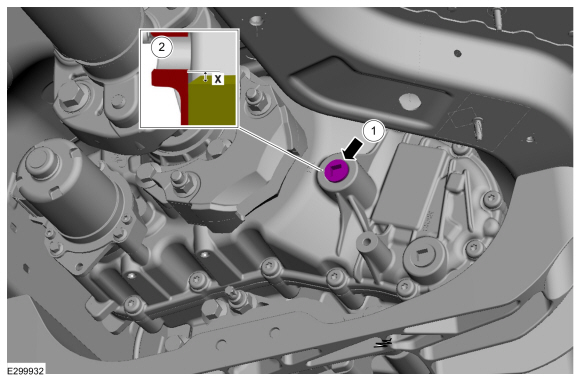

    Remove the filler plug and seal and add the specified amount and type of oil through the filler plug hole until the level reaches the bottom of the filler plug hole X: 0.25 inch.

    Description and Operation - Transfer Case - Overview

    Transfer case The Transfer Case is a gearbox that attaches to the output shaft of the transmission through a splined input at the transfer case. Torque from the transmission is transferred to the ..

    General Procedures - Transfer Case Draining and Filling

    Draining With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation)...
