Ford Explorer: Transfer Case / General Procedures - Transfer Case Draining and Filling

Ford Explorer 2020-2023 Service Manual / Powertrain / Automatic Transmission / Transfer Case / General Procedures - Transfer Case Draining and Filling


  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

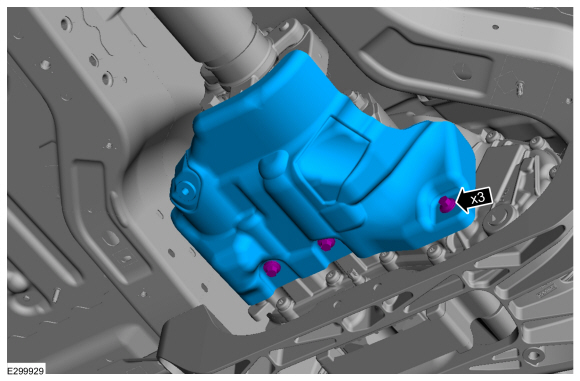

  1. If equipped.
    Torque: 21 lb.ft (28 Nm)
    1. Remove the drain plug and drain the fluid.
    1. Clean the drain plug and the area around drain plug.
    1. Install the drain plug.
      Torque: 142 (16 Nm)


    1. Clean the fill plug and the area around fill plug. Remove the fill plug.
    1. Fill the transfer case fluid.
    1. Install the fill plug.
      Torque: 142 (16 Nm)

    General Procedures - Transfer Case Fluid Level Check

    Check Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). NOTE: Make sure that the vehicle is standing on a level surface...

    Removal and Installation - Transfer Case Front Output Shaft Seal

    Special Tool(s) / General Equipment 205-1018Installation Tube 205-1067Installer, Output Shaft AWD Removal With the vehicle in NEUTRAL, position it on a hoist...
