Ford Explorer: Information and Entertainment System - General Information - Vehicles Without: SYNC 3 / Description and Operation - Information and Entertainment System - Component Location

Ford Explorer 2020-2024 Service Manual / Electrical / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles Without: SYNC 3 / Description and Operation - Information and Entertainment System - Component Location

NOTE: The available speaker configurations are shown first. The remaining hidden audio and SYNC system components follow the speaker configurations.

4 Speaker System


Item Description
1 Left/right front door speakers
2 Left/right rear door speakers

Audio System Hidden Components


Item Description
1 Voice microphone
2 ACM
3 AM/ FM1 antenna amplifier
4 Noise filter

USB Cable Routing


Item Description
1 USB cable

LVDS Cable Routing


Item Description
1 LVDS cable

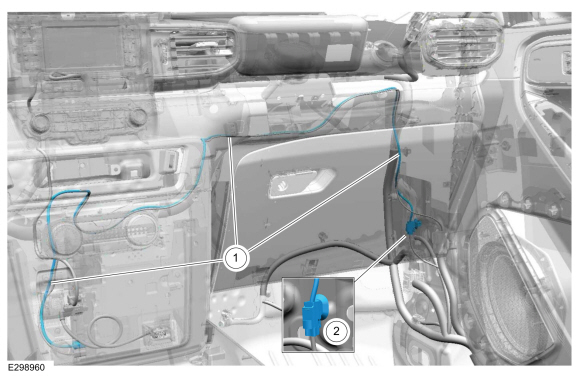

Front AM/ FM1 Antenna Cable Routing


Item Description
1 Front AM/ FM1 antenna cable
2 Front AM/ FM1 antenna cable in-line connection

Center AM/ FM1 Antenna Cable Routing


Item Description
1 Center AM/ FM1 antenna cable
2 Front AM/ FM1 antenna cable in-line connection
3 Rear AM/ FM1 antenna cable in-line connection

Rear AM/ FM1 Antenna Cable Routing


Item Description
1 Rear AM/ FM1 antenna cable
2 Rear AM/ FM1 antenna cable in-line connection

Front GPS Antenna Cable Routing


Item Description
1 Front GPS antenna cable
2 GPS antenna cable in-line connection

Rear GPS Antenna Cable Routing


Item Description
1 Rear GPS antenna cable
2 GPS antenna cable in-line connection

    Information and Entertainment System - General Information - Vehicles Without: SYNC 3

    ..

    Description and Operation - Information and Entertainment System - Overview

    Audio System NOTE: Refer to the Owner Literature for additional details of the audio system. AM/ FM Radio The ACM can operate when the ignition is on or off...
