Kia Picanto: Lighting / High Beam Assist (HBA): (if equipped)

High Beam Assist automatically switches between high and low beam according to the brightness of detected vehicles and certain road conditions. By selecting the appropriate beam, the function adjusts the headlight illumination range while driving.

Detecting sensor

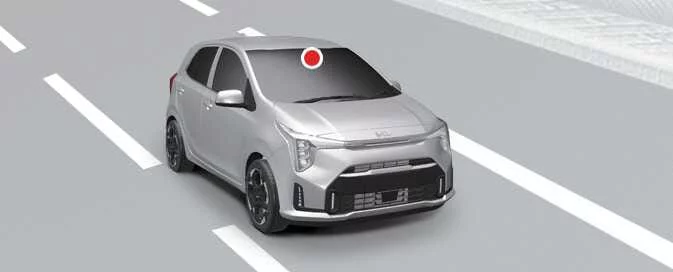

Figure 1. Front view camera

High Beam Assist uses the front view camera to assess ambient light and brightness while the vehicle is moving. The information detected by this camera supports automatic beam selection.

Use the illustration above to identify the detecting sensor’s location on your Kia Picanto.

NOTE

• Keep the front view camera in good condition so High Beam Assist can perform as intended. The function depends on the camera’s ability to obtain a clear view.

• For detailed camera precautions, refer to “Forward Collision-Avoidance Assist (FCA) (Front Camera Only)” or “Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)”, according to the equipment fitted to your vehicle.

• High Beam Assist Setting. High Beam Assist operation
• High Beam Assist malfunction and limitations
