Ford Explorer: Second Row Seats / Removal and Installation - Second Row Single Seat Armrest - Vehicles With: Second Row Captain Chairs

Ford Explorer 2020-2023 Service Manual / Body and Paint / Body and Paint / Second Row Seats / Removal and Installation - Second Row Single Seat Armrest - Vehicles With: Second Row Captain Chairs

Removal

NOTE: Removal steps in this procedure may contain installation details.

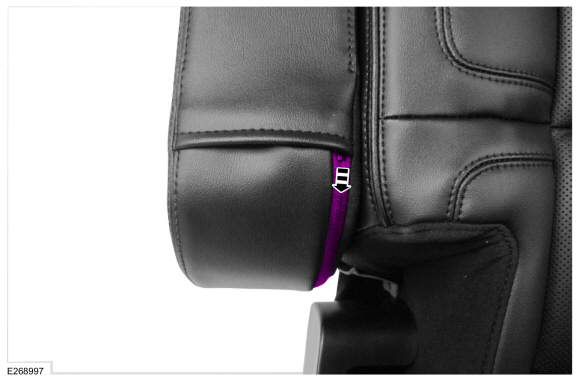

  1. Unzip the second row single seat armrest cover.

  1. Remove the second row single seat armrest.

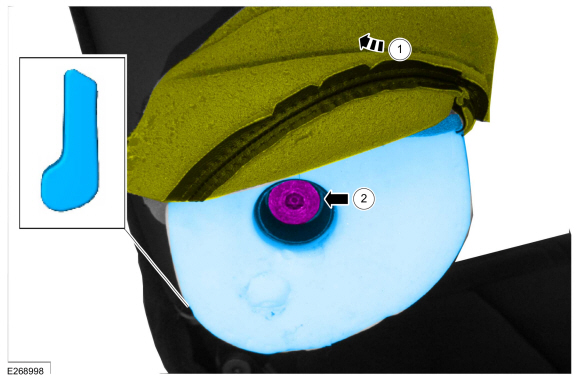

    1. Invert the single seat armrest cover to access the armrest pivot bolt.
    1. Remove the bolt.
      Torque: 33 lb.ft (45 Nm)

Installation

  1. To install, reverse the removal procedure.
