Removal

NOTE: LH rear seat shown, RH rear seat similar.

NOTE: Removal steps in this procedure may include installation details.

  1. Remove the second row easy entry power release actuator.
    Refer to: Second Row Easy Entry Power Release Actuator (501-10B Second Row Seats, Removal and Installation).
  1. Remove the second row single seat cushion cover.
    Refer to: Second Row Single Seat Cushion Cover - Vehicles With: Second Row Captain Chairs (501-10B Second Row Seats, Removal and Installation).

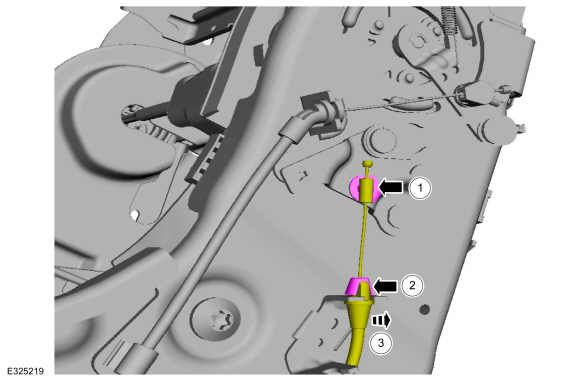

  1. Disconnect the second row easy entry power release cable and position aside.
    1. Release the second row easy entry power release cable end.
    1. Depress the second row easy entry power release cable tabs.
    1. Position the second row easy entry power release cable out of bracket.

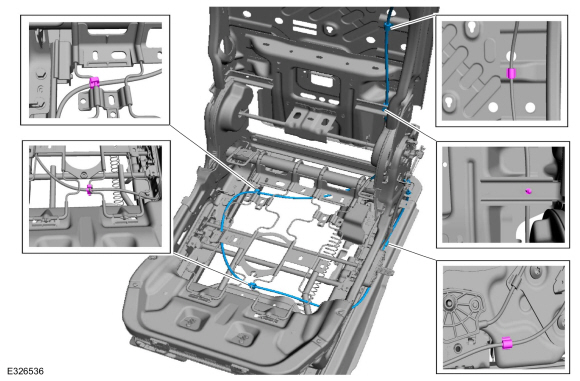

  1. Release the retainers and remove the second row easy entry power release cable.

Installation

  1. To install, reverse the removal procedure.

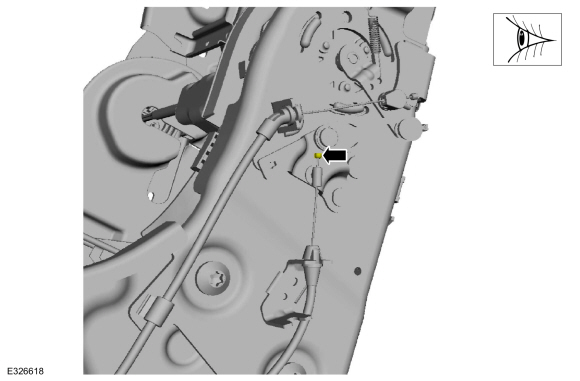

  1. Visually inspect that the second row easy entry power release cable end fitting is not resting on the cable bushing.
