Ford Explorer: Glass, Frames and Mechanisms / Removal and Installation - Rear Door Glass Top Run
Special Tool(s) /
General Equipment
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the rear door window regulator and motor.
Refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).
-

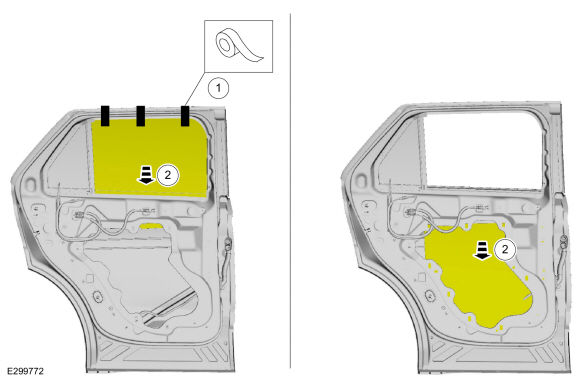

Lower the rear door window glass to the full down position.
-
Remove the tape from the rear door window glass.
-
Lower the rear door window glass to the full down position.
-
NOTE:
Use care to prevent damage to the rear door sunshade hooks.
If equipped.

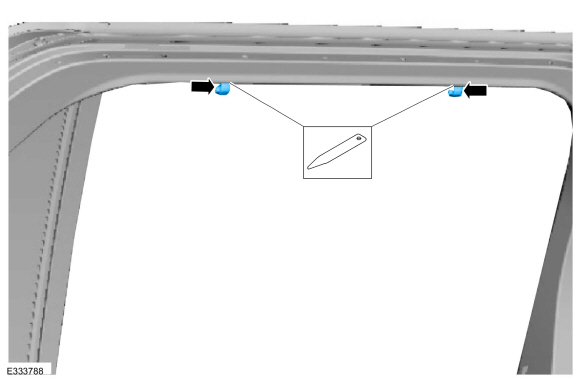

Remove the rear door sunshade hooks.
Use the General Equipment: Interior Trim Remover
-

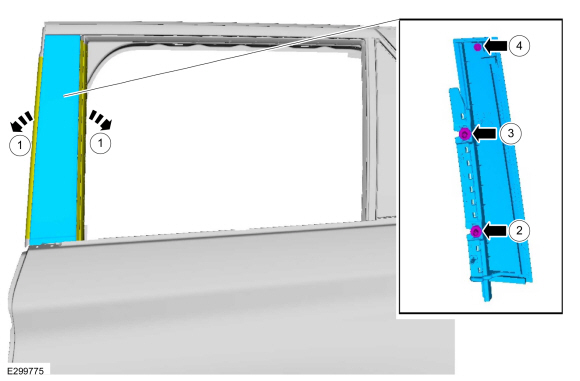

Remove upper interior rear door trim.
-
Remove the pin-type retainers.
-
Release the upper interior rear door trim.
-
Release the upper interior rear door trim.
-
Release the upper interior rear door trim.
-
Remove the upper interior rear door trim.
-

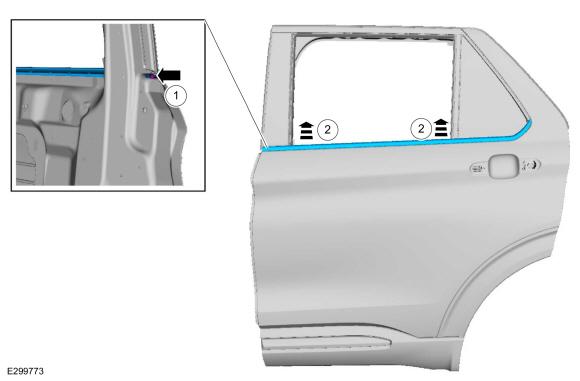

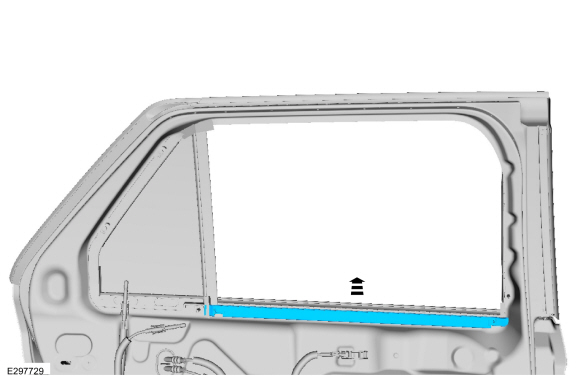

Remove the rear door inner belt moulding.
-
Remove the rear door outer belt moulding.
-
Remove the rear door outer belt moulding screw.
Torque:
12 lb.in (1.3 Nm)
-
Remove the rear door outer belt moulding.
-

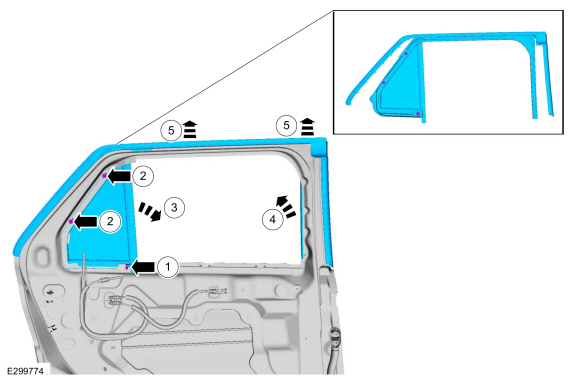

Remove the rear door upper moulding.
-
Position the rear door top run aside.
-
Release the retainer.
-
Release the retainer.
-
Release the retainer and remove the rear door upper moulding.
-

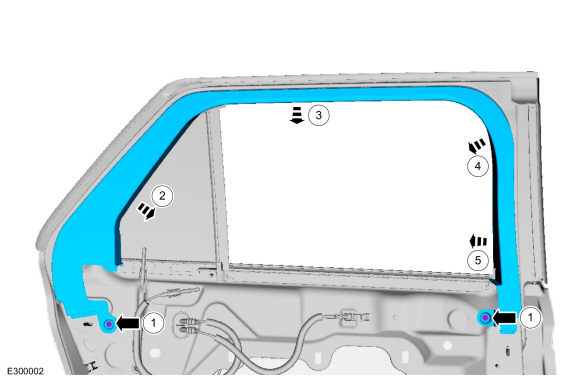

Remove the rear door glass top run.
-
Remove the nut.
Torque:
93 lb.in (10.5 Nm)
-
Remove the bolts.
Torque:
33 lb.in (3.7 Nm)
-
Position the rear door glass top run.
-
Position the rear door glass top run.
-
Remove the rear door glass top run.
Installation
-
To install, reverse the removal procedure.
