Ford Explorer: Glass, Frames and Mechanisms / Removal and Installation - Rear Door Window Control Switch

Ford Explorer 2020-2025 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Removal and Installation - Rear Door Window Control Switch

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: LH (left-hand) side shown, RH (right-hand) side similar.

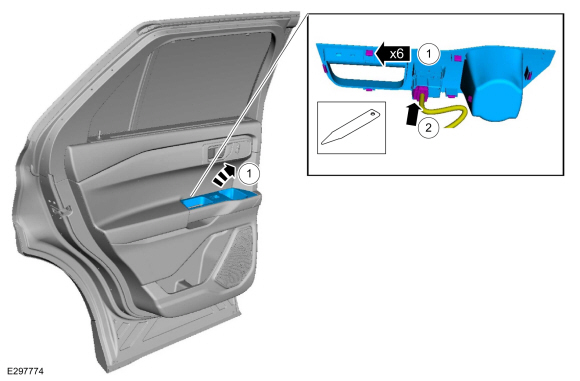

  1. Remove the rear door window control switch bezel assembly.
    1. Release the locking tabs from the rear door window control switch bezel assembly.
      Use the General Equipment: Interior Trim Remover
    1. Disconnect the electrical connector and remove the rear door window control switch bezel assembly.

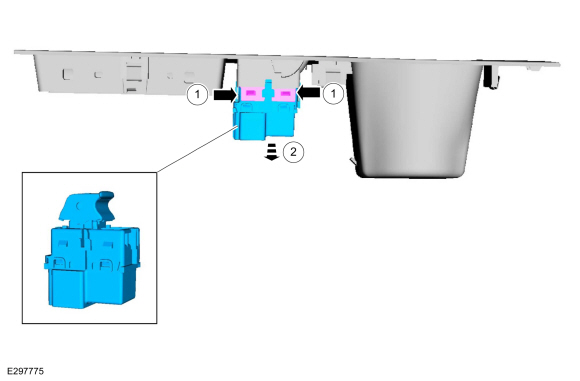

  1. NOTE: This step is only necessary when installing a new component.


    Remove the rear door window control switch from the bezel assembly.
    1. Release the locking tabs from the rear door window control switch.
    1. Remove the rear door window control switch from the bezel assembly.

Installation

  1. To install, reverse the removal procedure.
