Ford Explorer: Glass, Frames and Mechanisms / Removal and Installation - Rear Door Glass Run and Bracket

Ford Explorer 2020-2022 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Removal and Installation - Rear Door Glass Run and Bracket

Removal

NOTE: LH (left-hand) side shown, RH (right-hand) side similar.

NOTE: Removal steps in this procedure may contain installation details.

Aft rear door glass run and bracket

  1. Remove the rear door window regulator and motor.
    Refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).

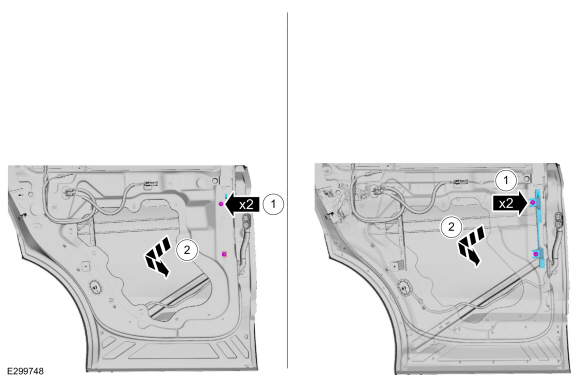

  1. Remove the aft rear door glass run and bracket.
    1. Remove the bolts from the aft rear door glass run and bracket.
      Torque: 62 lb.in (7 Nm)
    1. Remove the aft rear door glass run and bracket.

Fore rear door glass run and bracket

  1. Remove the rear door window regulator and motor.
    Refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).

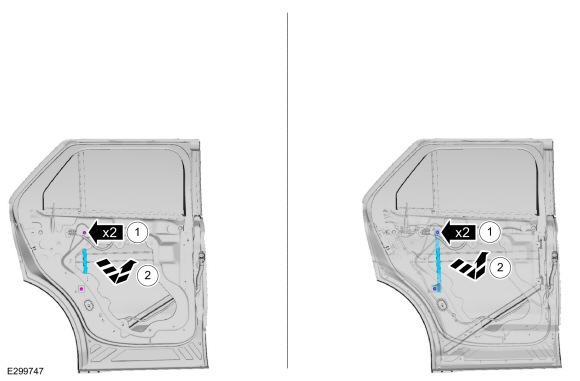

  1. Remove the fore rear door glass run and bracket.
    1. Remove the fore rear door glass run and bracket bolts.
      Torque: 62 lb.in (7 Nm)
    1. Remove the fore rear door glass run and bracket.

Installation

  1. To install, reverse the removal procedure.
