Ford Explorer: Passive Anti-Theft System (PATS) / Removal and Installation - Passive Anti-Theft System (PATS) Transceiver

Ford Explorer 2020-2023 Service Manual / Electrical / Electronic Feature Group / Passive Anti-Theft System (PATS) / Removal and Installation - Passive Anti-Theft System (PATS) Transceiver

Special Tool(s) / General Equipment

Pick Hook

Removal

Remove the ignition lock cylinder housing.
Refer to: Ignition Lock Cylinder Housing (211-05 Steering Wheel and Column Electrical Components, Removal and Installation).

Remove the PATS transceiver.

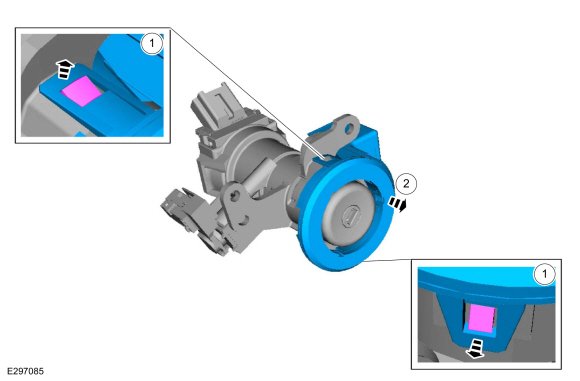

1. Release the tabs.
  Use the General Equipment: Pick Hook
1. Remove the PATS transceiver.

Installation

To install, reverse the removal procedure.

General Procedures - Key Programming Using Two Programmed Keys

Programming NOTE: This procedure works only if 2 or more programmed keys are available. NOTE: This procedure works only if the customer spare key programming is enabled...
