Ford Explorer: Battery, Mounting and Cables / Removal and Installation - Auxiliary Battery Cable

Ford Explorer 2020-2026 Service Manual / Electrical / Battery and Charging System / Battery, Mounting and Cables / Removal and Installation - Auxiliary Battery Cable

Removal

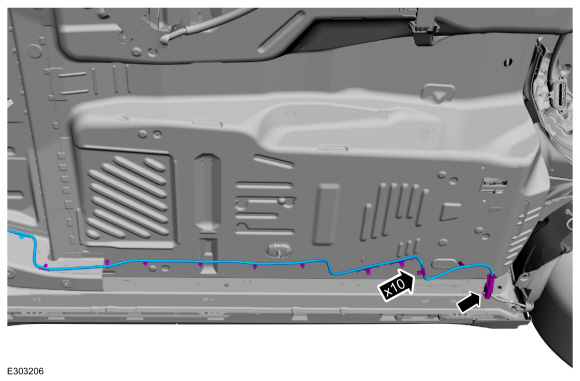

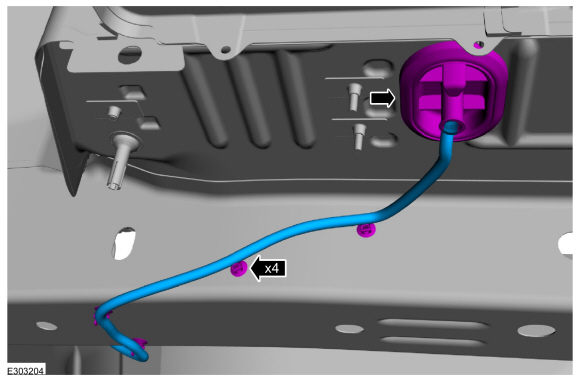

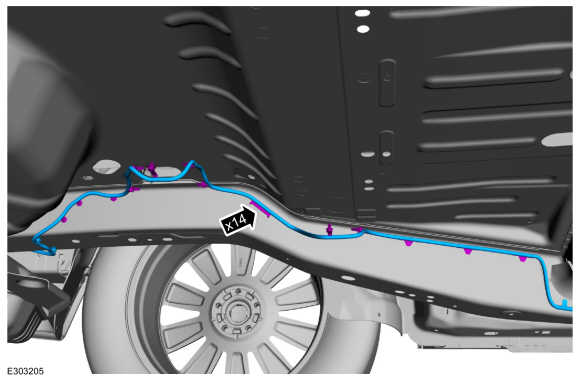

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

Disconnect the batteries.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

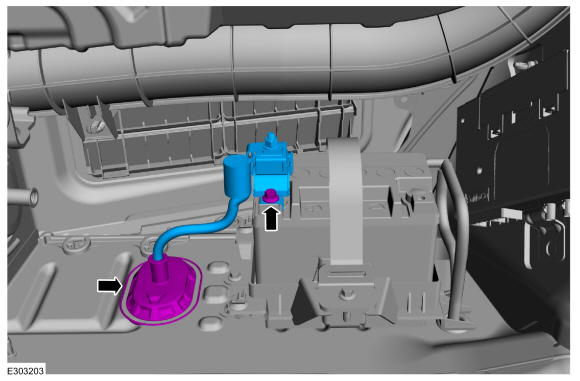

Torque: 62 lb.in (7 Nm)

Installation

To install, reverse the removal procedure.
