Ford Explorer: Electronic Engine Controls - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Intake Air Temperature (IAT) Sensor

Ford Explorer 2020-2024 Service Manual / Powertrain / Engine / Electronic Engine Controls - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Intake Air Temperature (IAT) Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

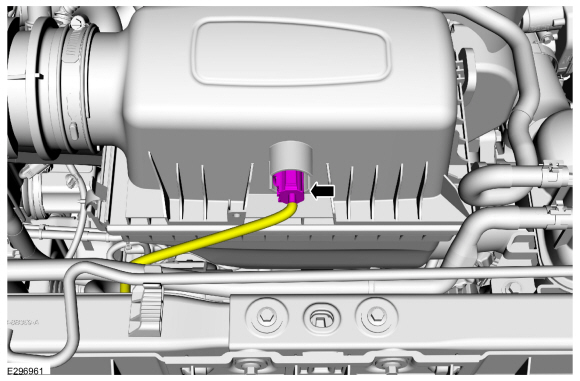

  1. Disconnect the IAT electrical connector.

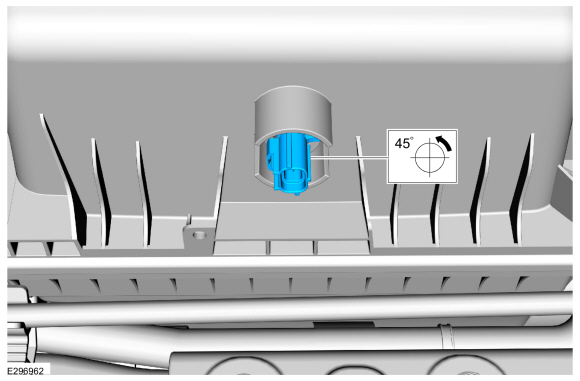

  1. Remove the IAT sensor.

Installation

  1. To install, reverse the removal procedure.
