Ford Explorer: High Voltage Battery, Mounting and Cables / Removal and Installation - High Voltage Battery Cables - Hybrid Electric Vehicle (HEV)
Removal
WARNING:
To prevent the risk of high-voltage shock, always follow
precisely all warnings and service instructions, including instructions
to depower the system. The high-voltage system utilizes approximately
450 volts DC, provided through high-voltage cables to its components and
modules. The high-voltage cables and wiring are identified by orange
harness tape or orange wire covering. All high-voltage components are
marked with high-voltage warning labels with a high-voltage symbol.
Failure to follow these instructions may result in serious personal
injury or death.
-
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
-
De-energize the high voltage system.
Refer to: High Voltage System De-energizing (414-03 High Voltage Battery, Mounting and Cables, General Procedures).
-
Remove the upper intake manifold.
Refer to: Upper Intake Manifold (303-01D Engine - 3.3L Duratec-V6 – Hybrid (BP), Removal and Installation).
High Voltage Battery Cable
-
Drain the electric powertrain cooling system.
Refer to: Cooling System Filling and Bleeding (303-03E Electric Powertrain Cooling - 3.3L Duratec-V6 – Hybrid (BP), General Procedures).
-
-

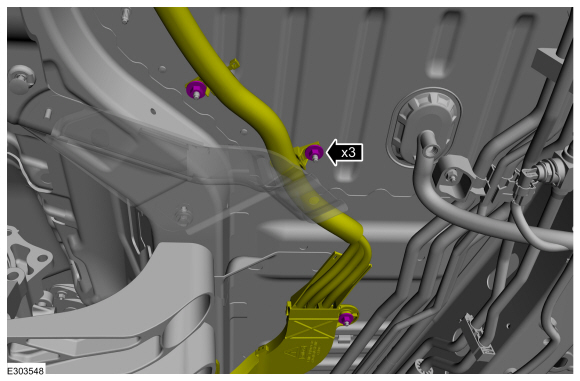

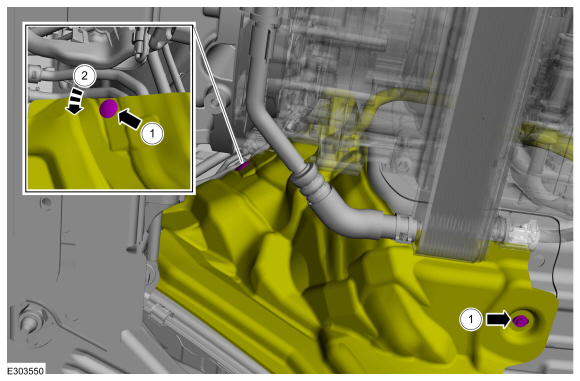

Remove the screw.
Torque:
27 lb.in (3 Nm)
-
Remove the retainers.
-
Remove the nuts.
Torque:
53 lb.in (6 Nm)
-
-
Remove the fasteners.
-
Remove the push pins.
-
Remove the RH catalytic converter.
Refer to: Catalytic Converter RH (309-00D Exhaust System - 3.3L Duratec-V6 – Hybrid (BP), Removal and Installation).
-

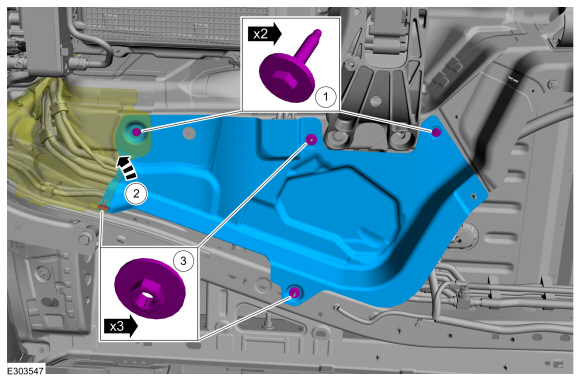

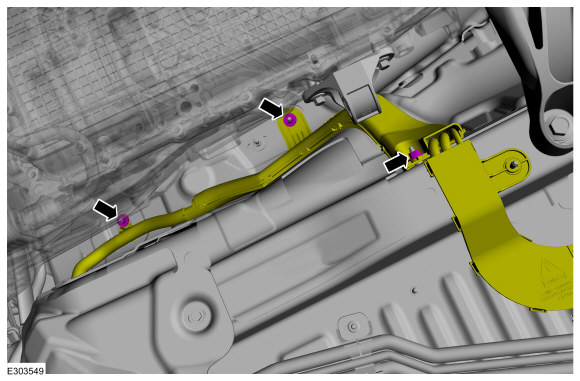

Remove the bolts and position aside the wire shield.
Torque:
97 lb.in (11 Nm)
-

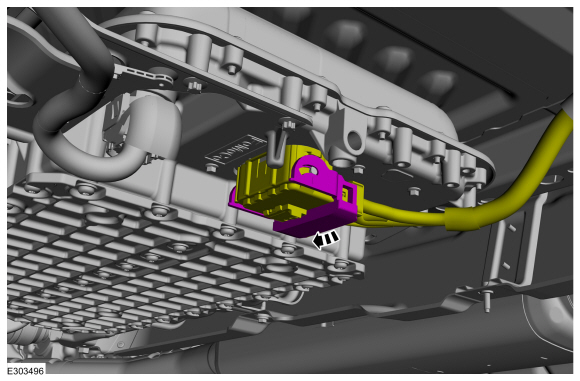

Disconnect the high voltage battery cable electrical connector.
-
-

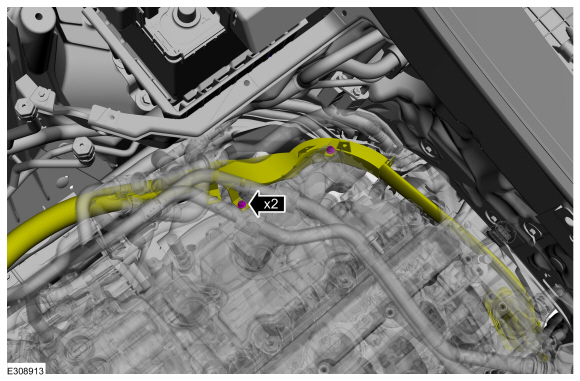

Remove the bolts.
Torque:
97 lb.in (11 Nm)
-
Position aside the shield.
-

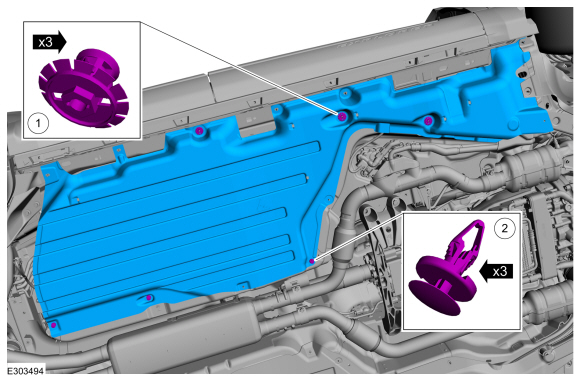

Remove the nuts and the RH floor heat shield.
Torque:
97 lb.in (11 Nm)
-
Remove the nuts and position aside the wire harness.
Torque:
53 lb.in (6 Nm)
-
Remove the nuts and position aside the wire harness.
Torque:
53 lb.in (6 Nm)
-
-

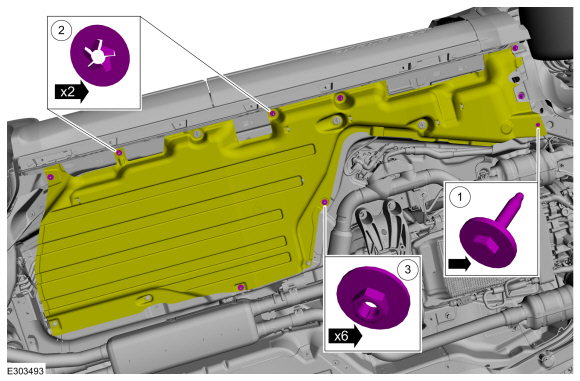

Remove the screw and the trim pin.
Torque:
97 lb.in (11 Nm)
-
Position aisde the RH side engine protection cover.
-

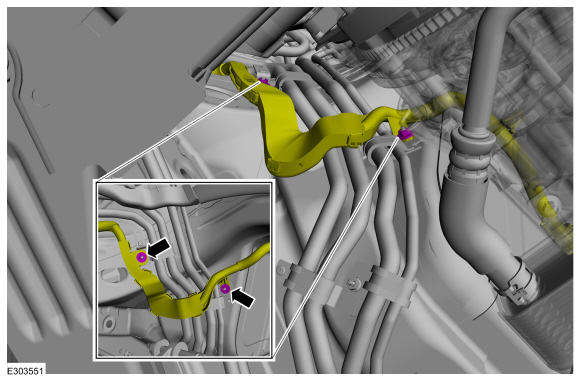

Remove the nuts and position aside the wire harness.
Torque:
53 lb.in (6 Nm)
-

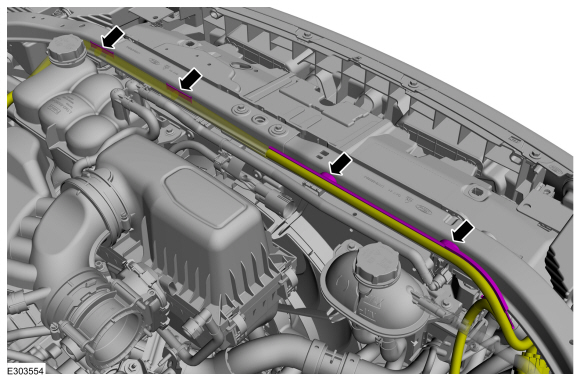

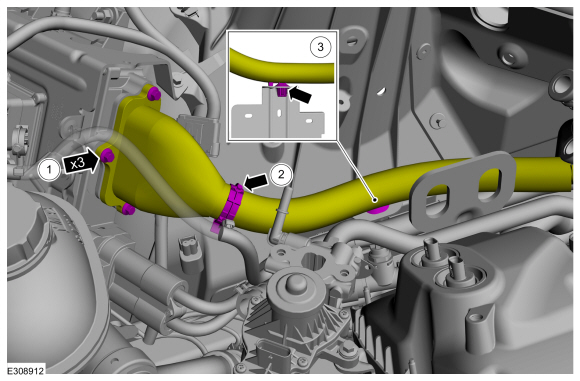

Release the wire guides and position aside the wire harness.
-

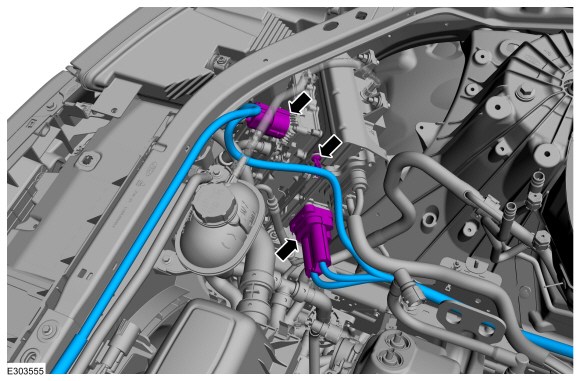

Disconnect the electrical connector from the A/C compressor, release the wire guides and position aside the wire harness.
-
Release the wire guides and position aside the wire harness.
-
Remove the PCM.
Refer to: Powertrain Control Module (PCM) (303-14C Electronic Engine Controls - 3.3L Duratec-V6/3.3L Duratec-V6 – Hybrid (BP), Removal and Installation).
-

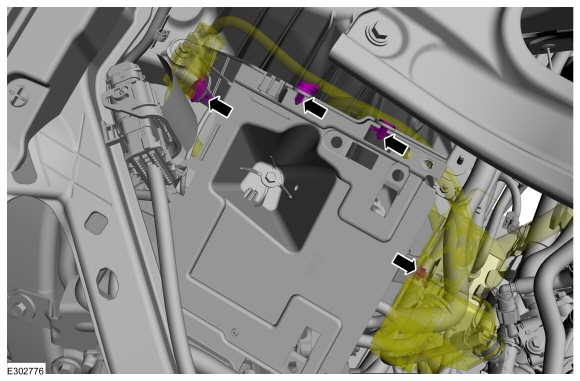

Detach the wiring harness retainers and position aside the harness.
-
Detach the wiring harness retainers and position aside the harness.
-

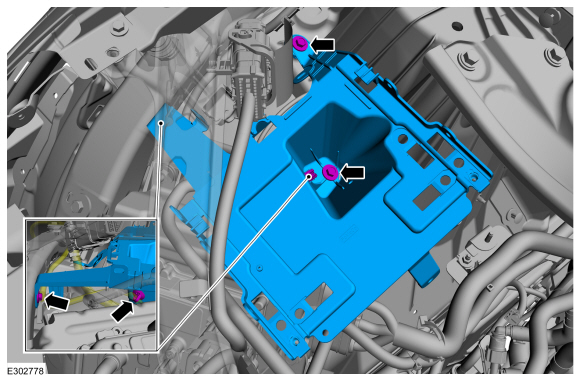

Remove the bolts and the PCM bracket.
Torque:
53 lb.in (6 Nm)
-

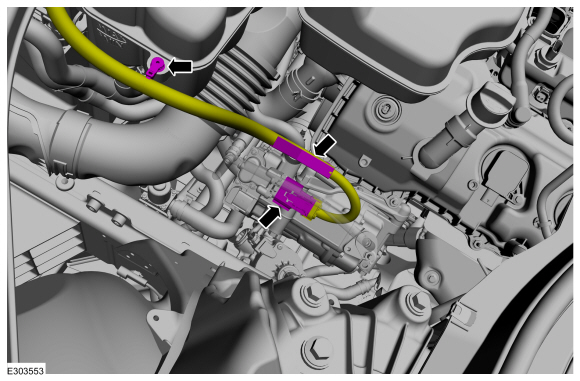

Disconnect the electrical connectors from the DCDC and remove the High Voltage Battery Cables from the vehicle.
High Voltage 3 Phase AC -ISC (Inverter System Controller) to E-Motor Cable
-
-

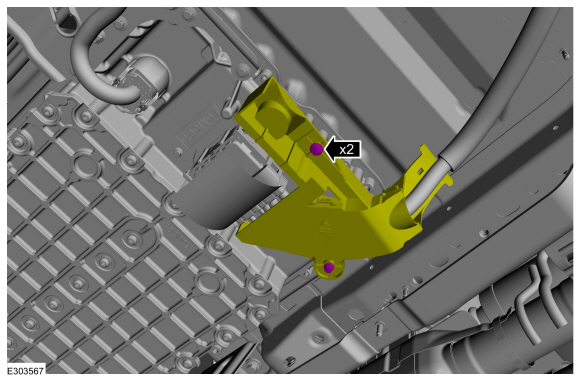

Remove the retainers, disconnect the electrical connectors from the ISC.
Torque:
97 lb.in (11 Nm)
-
Release the wire guide.
-
Release the wire guide and position aside the harness.
-
Remove the retainers.
-

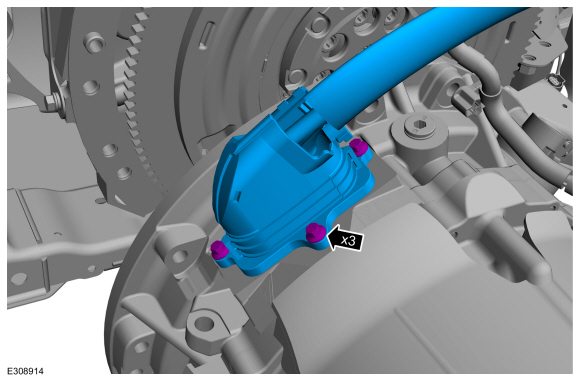

Disconnect the electrical connectors from the
transmission and remove the High Voltage Battery Cables from the
vehicle.
Torque:
97 lb.in (11 Nm)
Installation
-
To install, reverse the removal procedure.
-
NOTICE:
If the transmission is not positioned on the dowel pins, damage to the transmission may occur.
-
If the dowel pins were pulled out of the engine
block during removal, install new dowel pins in the engine block.
-

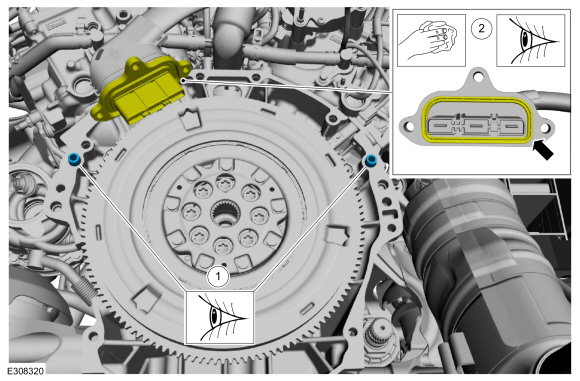

Clean and inspect the high voltage electrical connector gasket.
