Ford Explorer: Glass, Frames and Mechanisms / Removal and Installation - Front Door Window Regulator Motor

Ford Explorer 2020-2025 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Removal and Installation - Front Door Window Regulator Motor

Removal

NOTE: Left hand (LH) shown, right hand (RH) similar.

NOTE: For front door window regulator motors that are non-functional it may be necessary to remove the front door window regulator motor prior to securing the front door window glass.

Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

NOTICE: Damage to the front door window glass may occur if not secured.

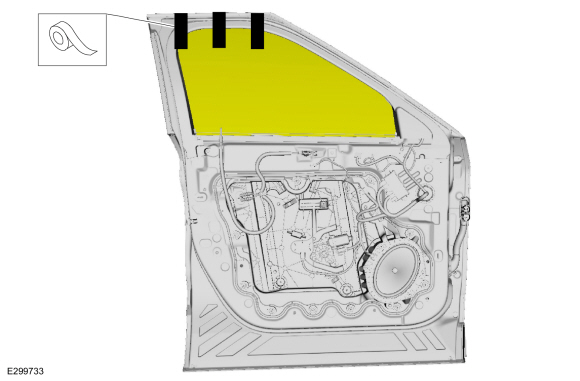

Secure the front door window glass with tape.

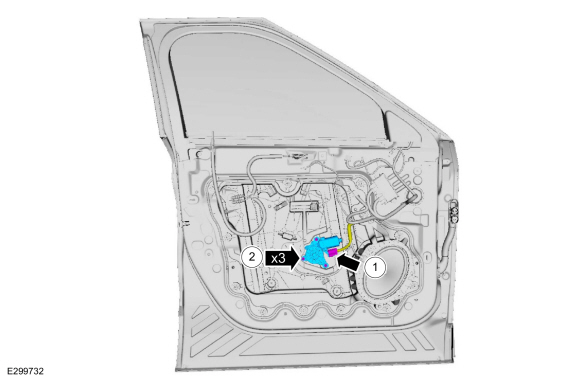

Remove the front door window regulator motor.
1. Disconnect the front door window regulator motor electrical connector.
1. Remove the bolts and the front door window regulator motor.

Installation

To install, reverse the removal procedure.

Carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
