Ford Explorer: Electronic Engine Controls - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Crankshaft Position (CKP) Sensor

Ford Explorer 2020-2021 Service Manual / Powertrain / Engine / Electronic Engine Controls - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Crankshaft Position (CKP) Sensor

Special Tool(s) / General Equipment

303-1521
Alignment Tool, Crankshaft Position Sensor
TKIT-2010C-FLM
303-507
Timing Peg, Crankshaft TDC
TKIT-2001N-FLM
TKIT-2001N-ROW

Removal

NOTICE: Do not loosen or remove the crankshaft pulley bolt. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.

NOTICE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Remove the underbody shield.
  1. Remove the A/C compressor belt.
    Refer to: Air Conditioning (A/C) Compressor Belt (303-05A Accessory Drive - 2.3L EcoBoost (201kW/273PS), Removal and Installation).
    • Disconnect the CKP sensor electrical connector.
    • Remove the bolts and the CKP sensor.
  1. Remove the engine plug bolt.

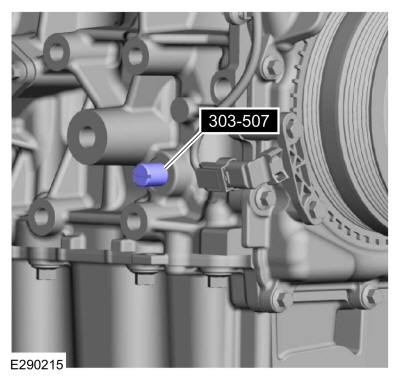

  1. Install Special Service Tool: 303-507  Timing Peg, Crankshaft TDC.
  1. NOTE: The Crankshaft TDC Timing Peg will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.

    NOTE: The engine front cover is removed from graphic for clarity.

    Rotate the crankshaft clockwise until the contacts the special tool.
    Use Special Service Tool: 303-507  Timing Peg, Crankshaft TDC.

Installation

  1. NOTE: Do not tighten the CKP sensor bolts at this time.

    Install the CKP sensor and the bolts finger tight.
  1. Install the special tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel. Tighten the CKP sensor bolts.
    Use Special Service Tool: 303-1521  Alignment Tool, Crankshaft Position Sensor.
    Torque: 97 lb.in (11 Nm)
  1. Remove Special Service Tool: 303-1521  Alignment Tool, Crankshaft Position Sensor.
  1. Remove Special Service Tool: 303-507  Timing Peg, Crankshaft TDC.
  1. Install the engine plug bolt.
    Torque: 177 lb.in (20 Nm)
  1. Connect the CKP sensor electrical connector.
  1. Install the accessory drive belt.
    Refer to: Air Conditioning (A/C) Compressor Belt (303-05A Accessory Drive - 2.3L EcoBoost (201kW/273PS), Removal and Installation).
  1. Install the underbody shield.
  1. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
