Ford Explorer: Electronic Engine Controls - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Catalyst Monitor Sensor
Special Tool(s) /
General Equipment
.jpg) |
303-476
(T94P-9472-A)
Socket, Exhaust Gas Oxygen Sensor TKIT-1994-LM/M TKIT-1994-F TKIT-1994-FLM/FM |
IPTV Free Trial Materials
Name |
Specification |
Motorcraft® High Temperature Nickel Anti-Seize Lubricant XL-2 |
-
|
Motorcraft® Penetrating and Lock Lubricant XL-1 |
-
|
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-
Remove the RH front wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
-

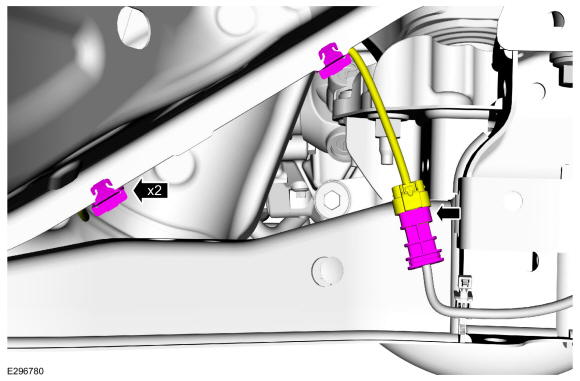

Disconnect the electrical connector and harness retainers.
-
Disconnect the electrical connector and harness
retainer. Apply penetrating oil to sensor, using the special tool remove
the Catalyst monitor sensor.
Use Suggested Tool: 303-476
(T94P-9472-A)
Socket, Exhaust Gas Oxygen Sensor. Tool shown or a commercially available equivalent can be used.
Material: Motorcraft® Penetrating and Lock Lubricant
/ XL-1
Installation
-
To install, reverse the removal procedure.
-
Apply anti-seize to thread of sensor, using the special
tool install the Catalyst monitor sensor. Connect the electrical
connector and harness retainer.
Use Special Service Tool: 303-476
(T94P-9472-A)
Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant
/ XL-2
Torque:
35 lb.ft (48 Nm)
Materials
Name
Specification
Motorcraft® Silicone Brake Caliper Grease and Dielectric CompoundXG-3-A
ESE-M1C171-A
Removal
NOTE:
