Ford Explorer: Information and Entertainment System - General Information - Vehicles Without: SYNC 3 / Removal and Installation - Antenna Isolator Module

Ford Explorer 2020-2024 Service Manual / Electrical / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles Without: SYNC 3 / Removal and Installation - Antenna Isolator Module

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Release the clips and remove the liftgate center upper trim panel.
    Use the General Equipment: Interior Trim Remover
  1. Release the clips and remove the liftgate RH upper trim panel.
    Use the General Equipment: Interior Trim Remover

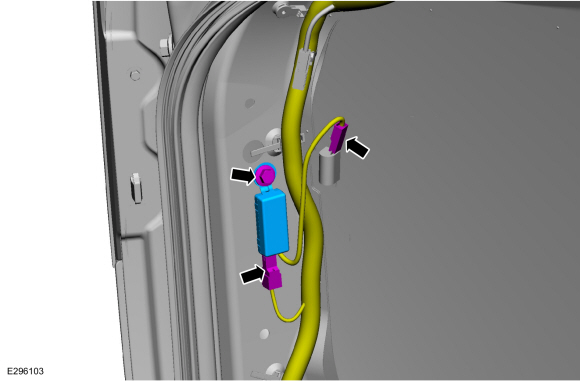

  1. Disconnect the connectors, remove the screw and the antenna isolator module.
    Torque: 93 lb.in (10.5 Nm)

Installation

  1. To install, reverse the removal procedure.
