Ford Explorer: Handles, Locks, Latches and Entry Systems / Description and Operation - Handles, Locks, Latches and Entry Systems - Component Location

Ford Explorer 2020-2022 Service Manual / Body and Paint / Body and Paint / Handles, Locks, Latches and Entry Systems / Description and Operation - Handles, Locks, Latches and Entry Systems - Component Location

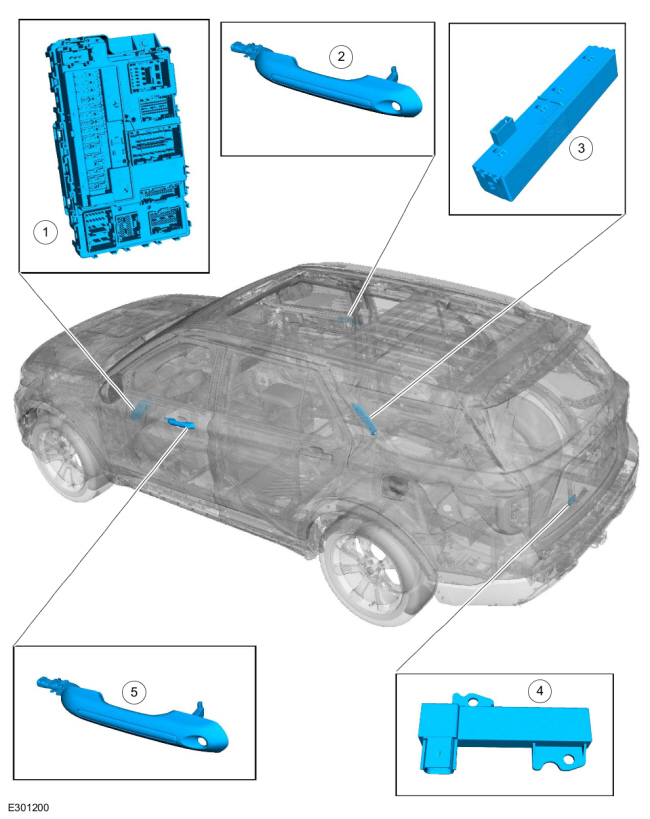

Item Description
1 BCM
2 Exterior Door Handle Keyless Entry Antenna RH
3 RTM
4 Keyless Entry Rear Antenna
5 Exterior Door Handle Keyless Entry Antenna LH
