Ford Explorer: Engine Cooling - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Transmission Fluid Heater Coolant Control Valve
Removal
-
![](images/removal_and_installation_transmission_fluid_heater_coolant_control_valve-669/382/imagen2_007(67).jpg)
![](images/removal_and_installation_transmission_fluid_heater_coolant_control_valve-669/382/imagen2_006(81).jpg)
WARNING:
When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

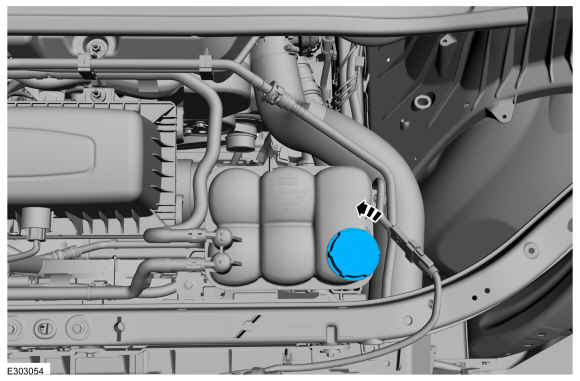

Loosen the pressure relief cap.
-

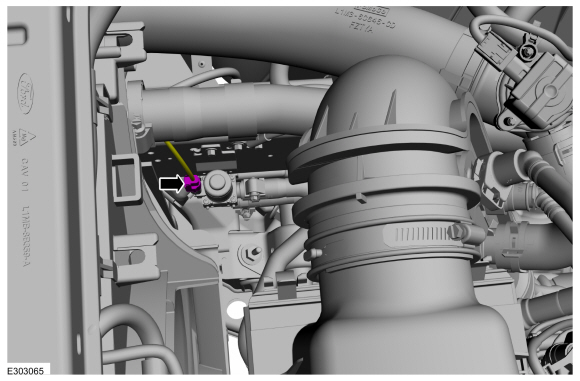

Disconnect the coolant control valve electrical connector.
-
Clamp off the coolant control valve hoses.
-

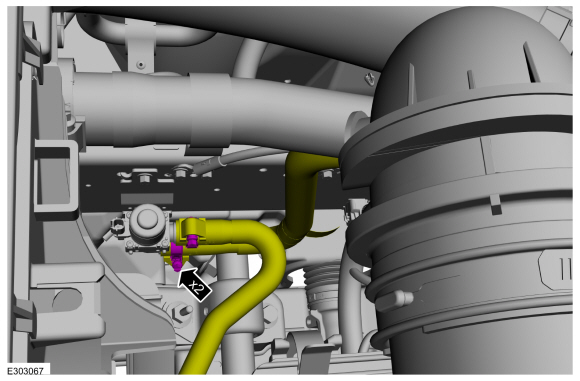

Loosen the clamps and disconnect the coolant hoses.
Torque:
44 lb.in (5 Nm)
-

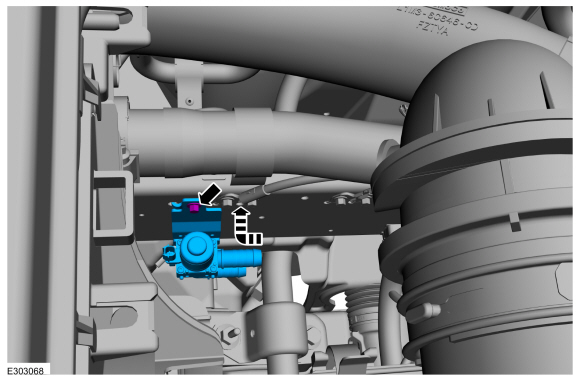

Remove the bolt and the transmission fluid heater coolant control valve.
Torque:
62 lb.in (7 Nm)
Installation
-
To install, reverse the removal procedure.
-
Fill and bleed the cooling system.
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 2.3L EcoBoost (201kW/273PS), General Procedures).
