Ford Explorer: Seatbelt Systems / Removal and Installation - Third Row Seatbelt Buckle

Ford Explorer 2020-2022 Service Manual / Body and Paint / Body and Paint / Seatbelt Systems / Removal and Installation - Third Row Seatbelt Buckle

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH (left-hand) shown, RH (right-hand) similar.

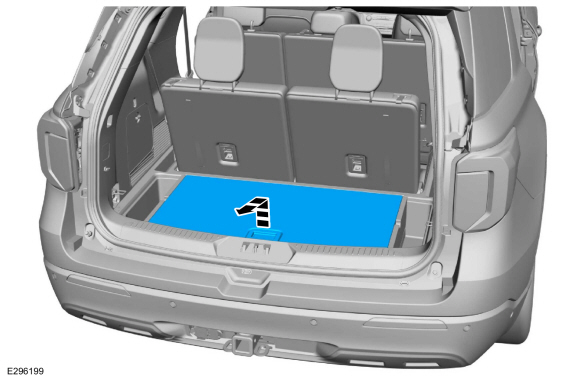

  1. Remove the luggage compartment floor cover.

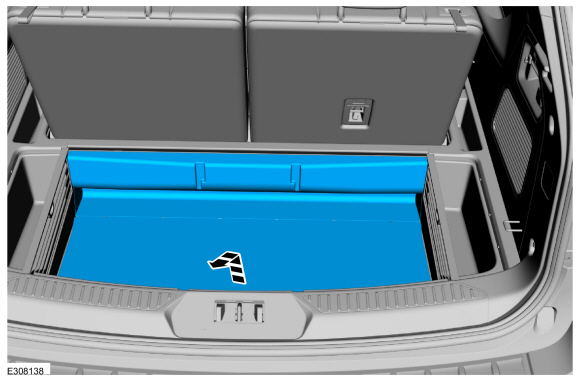

  1. Remove the luggage compartment storage bin.

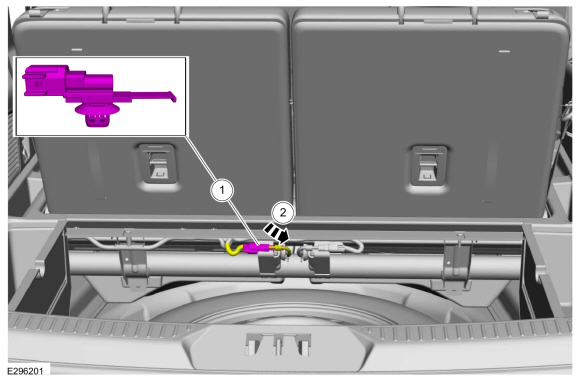

    1. Detach and disconnect the third row seatbelt buckle electrical connector.
    1. Route the wiring harness through the seat frame.

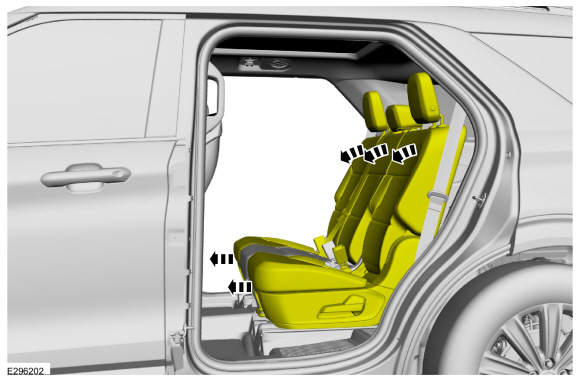

  1. Fold the second row seats and position the outer seats forward.

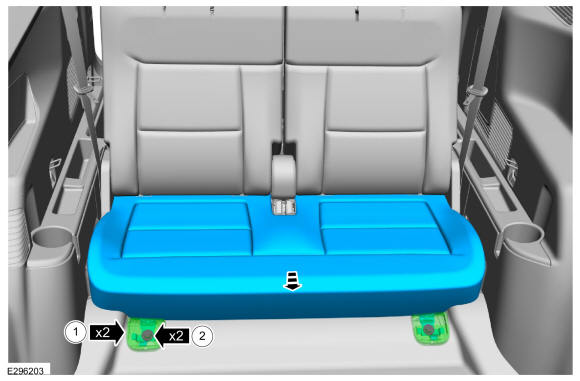

  1. Remove the third row seat cushion.
    1. Remove the bolt covers.
    1. Remove the bolts.
      Torque: 35 lb.ft (47 Nm)

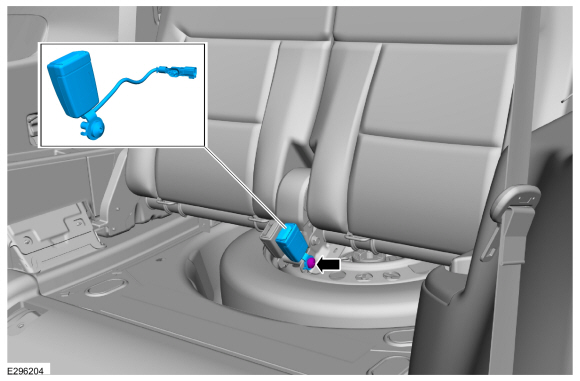

  1. Remove the bolt and the third row seatbelt buckle.
    Torque: 30 lb.ft (40 Nm)

Installation

NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.

  1. To install, reverse the removal procedure.
  1. Check the seatbelt system for correct operation.
    Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
