Removal

  1. Remove the third row seat cushion.
    Refer to: Third Row Seat Cushion (501-10C Third Row Seats, Removal and Installation).

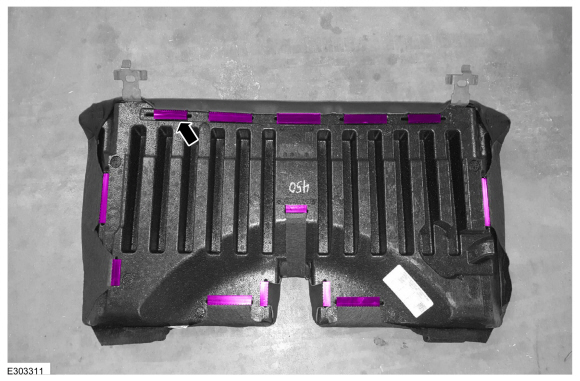

  1. Release the retainers from the seat cushion frame.

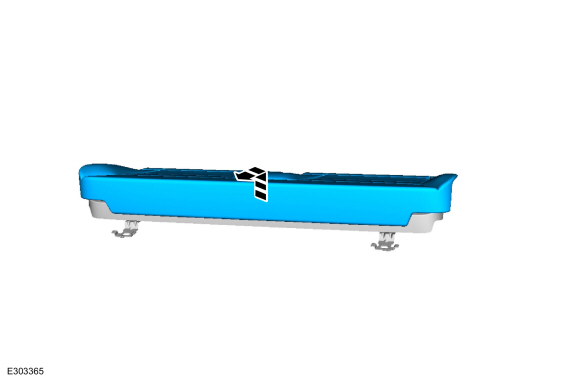

  1. Remove the third row seat cushion cover and foam.
  1. NOTICE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam.


    Remove the third row seat cushion cover.

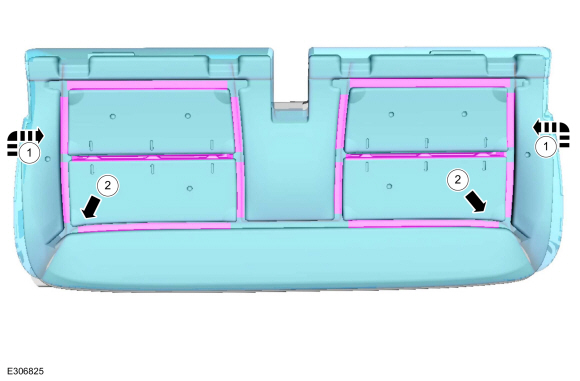

    1. Invert the cover.
    1. Release the hook-and-loop strips.

Installation

  1. To install, reverse the removal procedure.
