Ford Explorer: Second Row Seats / Removal and Installation - Second Row Single Seat Easy Entry Seat Fold Switch

Ford Explorer 2020-2023 Service Manual / Body and Paint / Body and Paint / Second Row Seats / Removal and Installation - Second Row Single Seat Easy Entry Seat Fold Switch

Removal

NOTE: Removal steps in this procedure may include installation details.

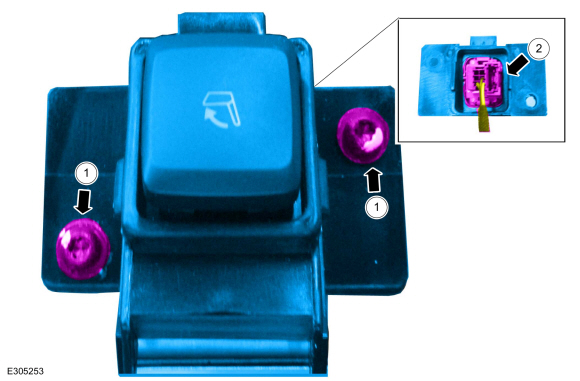

  1. Release the retainers and remove the second row single seat easy entry seat fold switch bezel.

  1. Remove the second row single seat easy entry seat fold switch.
    1. Remove the screws.
      Torque: 18 lb.in (2 Nm)
    1. Disconnect the electrical.

Installation

  1. To install, reverse the removal procedure..
