Ford Explorer: Exterior Trim and Ornamentation / Removal and Installation - Roof Rail
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-
Lower the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
Remove the nuts.
Torque:
53 lb.in (6 Nm)
-
Remove the roof moulding.
Installation
-

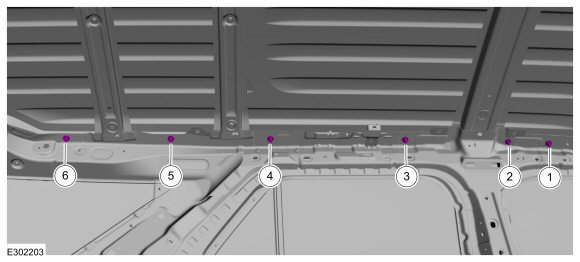

Tighten in sequence shown.
Torque:
53 lb.in (6 Nm)
-
Install the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
Lower the headliner...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
NOTE:
This step requires the aid of another technician...
