Ford Explorer: Roof Opening Panel / Removal and Installation - Roof Opening Panel Blind
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the roof opening panel fixed glass.
Refer to: Roof Opening Panel Fixed Glass (501-17 Roof Opening Panel, Removal and Installation).
-
NOTE:
The orientation of the blind must be the same as
when removed. The front and back end of the blind cannot be reversed.
On both sides.

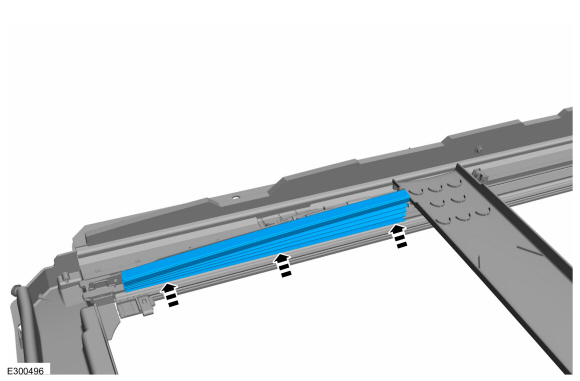

Slide the blind rearward and up out of the guide track.
Installation
-
To install reverse the removal procedure.
-
Push the tabs on blind back into the guide track.
