Ford Explorer: Rear Climate Control / Removal and Installation - Rear Temperature Door Actuator

Ford Explorer 2020-2022 Service Manual / Electrical / Climate Control System / Rear Climate Control / Removal and Installation - Rear Temperature Door Actuator

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the RH loadspace trim panel.
    Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

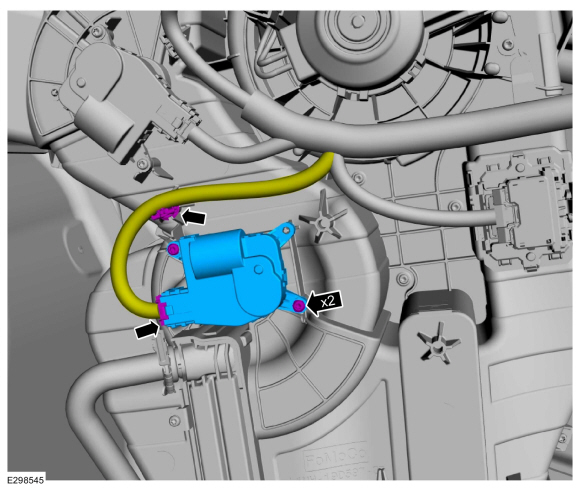

    • Disconnect the electrical connector.
    • Detach the wiring harness routing clip.
    • Remove the retainers and the rear temperature blend door actuator.

Installation

  1. To install, reverse the removal procedure.

    Removal and Installation - Rear Heating, Ventilation and Air Conditioning (RHVAC) Control Module

    Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: Removal steps in this procedure may contain installation details...

    Removal and Installation - Rear Thermostatic Expansion Valve

    Removal NOTICE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contaminati..
