Ford Explorer: Rear Climate Control / Removal and Installation - Rear Heating, Ventilation and Air Conditioning (RHVAC) Control Module

Ford Explorer 2020-2024 Service Manual / Electrical / Climate Control System / Rear Climate Control / Removal and Installation - Rear Heating, Ventilation and Air Conditioning (RHVAC) Control Module

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

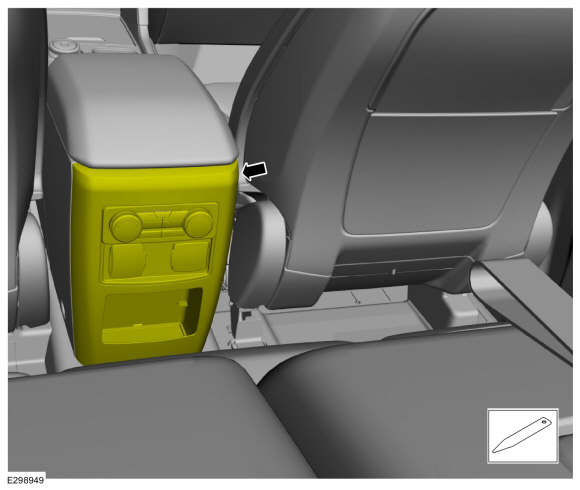

  1. Release the clips and position the floor console rear trim panel out.
    Use the General Equipment: Interior Trim Remover

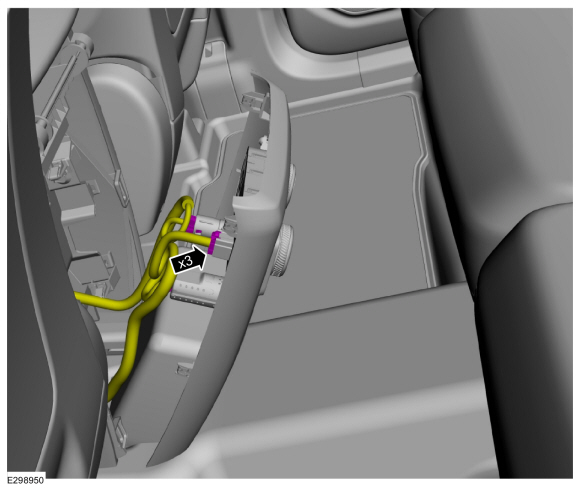

  1. Disconnect the electrical connectors and remove the floor console rear trim panel.

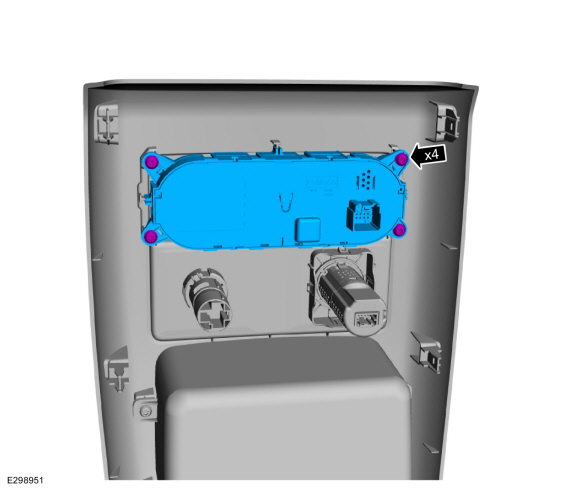

  1. Remove the screws and the Rear HVAC Control Module.

Installation

  1. To install, reverse the removal procedure.
