Ford Explorer: Police Equipment / Removal and Installation - Rear Side Marker Flashing Light Emitting Diode (LED) Lamps

Ford Explorer 2020-2024 Service Manual / General Service Information / Police Equipment / Removal and Installation - Rear Side Marker Flashing Light Emitting Diode (LED) Lamps

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH lamp assembly shown, RH lamp assembly is similar.

  1. Remove the loadspace trim panel.
    Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

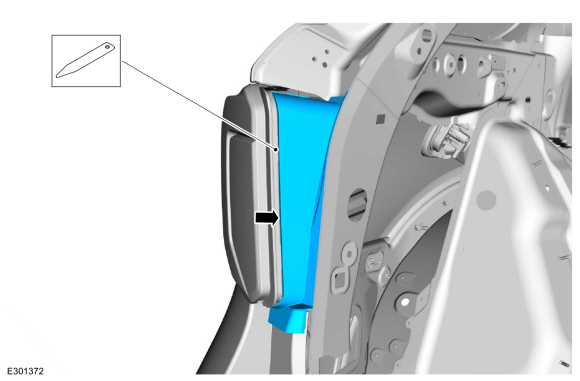

  1. Using a non-marring tool, remove the rear lamp assembly side trim cover.
    Use the General Equipment: Interior Trim Remover

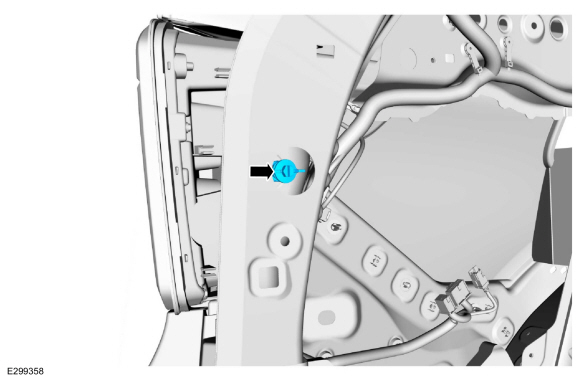

  1. Remove the screw.
    Torque: 22 lb.in (2.5 Nm)

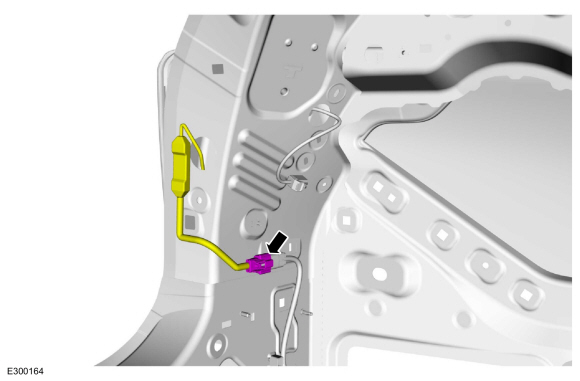

  1. Disconnect the rear lamp assembly electrical connector.

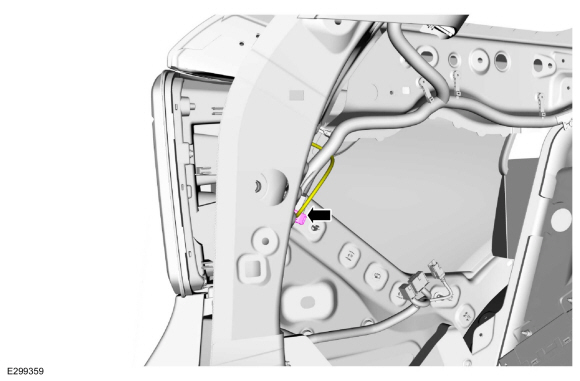

  1. Disconnect the rear lamp flashing LED electrical connector.

  1. Position the rear lamp assembly.
    1. Using a non-marring tool, release the rear lamp assembly retainer pin outward.
      Use the General Equipment: Interior Trim Remover
    1. Gently pull the rear lamp assembly away from the vehicle.

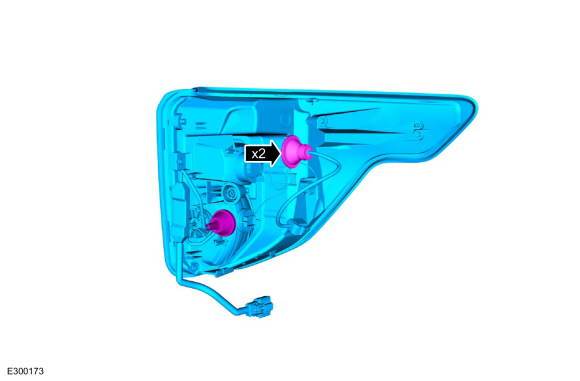

  1. Detach the rubber grommets from the body and remove the rear lamp assembly.

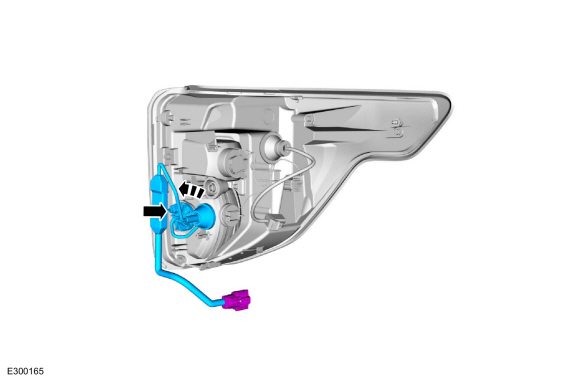

  1. Turn the rear lamp flashing LED housing counter clock-wise and remove the rear lamp flashing LED assembly.

Installation

  1. To install, reverse the removal procedure.
