Ford Explorer: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Park Lock Pawl Solenoid

Ford Explorer 2020-2022 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Park Lock Pawl Solenoid

Removal

  1. Remove the transmission fluid pan, gasket and filter.
    Refer to: Transmission Fluid Pan, Gasket and Filter (307-01C Automatic Transmission - 10-Speed Automatic Transmission – 10R80 MHT, Removal and Installation).
  1. Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector.

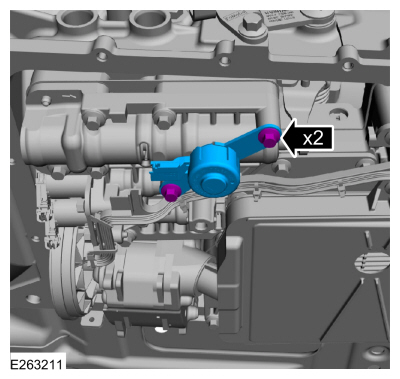

  1. Remove the bolts and the park lock pawl solenoid.

Installation

  1. Install the park lock pawl solenoid and the bolts.
    Torque: 106 lb.in (12 Nm)

  1. Connect the internal wiring harness electrical connector.
    • Slide the plastic lock to the locked position.
  1. Install the transmission fluid pan, gasket and filter.
    Refer to: Transmission Fluid Pan, Gasket and Filter (307-01C Automatic Transmission - 10-Speed Automatic Transmission – 10R80 MHT, Removal and Installation).

    Removal and Installation - Output Shaft Speed (OSS) Sensor

    Removal Remove the main control valve body. Refer to: Main Control Valve Body (307-01B Automatic Transmission - 10-Speed Automatic Transmission – 10R80, Removal and Installation)...

    Removal and Installation - Selector Shaft Seal

    Special Tool(s) / General Equipment 307-549Installer, Shift Shaft Fluid SealTKIT-2005D1-F1 Materials Name Specification Motorcraft® MERCON® ULV Automatic Transmission FluidXT-12-..
