Ford Explorer: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Output Shaft Speed (OSS) Sensor

Ford Explorer 2020-2024 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Output Shaft Speed (OSS) Sensor

Removal

Remove the main control valve body.
Refer to: Main Control Valve Body (307-01B Automatic Transmission - 10-Speed Automatic Transmission – 10R80, Removal and Installation).

Remove the OSS sensor.

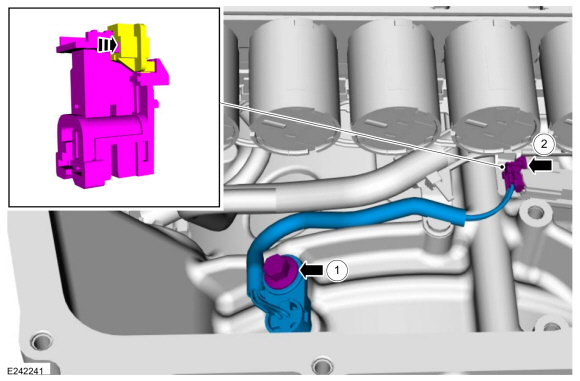

1. Slide the plastic lock to the unlocked position. While pressing the plastic tab, disconnect the electrical connector.
1. Remove the bolt and the OSS sensor.

Installation

Install the OSS sensor.

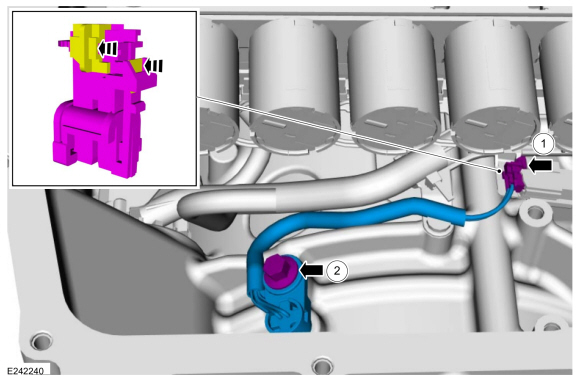

1. Install the OSS sensor bolt.
  Torque: 62 lb.in (7 Nm)
1. Connect the electrical connector. Slide the plastic lock to the locked position.

Install the main control valve body.
Refer to: Main Control Valve Body (307-01B Automatic Transmission - 10-Speed Automatic Transmission – 10R80, Removal and Installation).

Removal and Installation - Output Shaft Seal

Special Tool(s) / General Equipment 100-001 (T50T-100-A) Slide Hammer 205-1018Installation Tube 307-309Remover, Torque Converter SealTKIT-1994-FMH/FLMHTKIT-1994-LMH/MHTKIT-1994-..

Removal and Installation - Park Lock Pawl Solenoid

Removal Remove the transmission fluid pan, gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter (307-01C Automatic Transmission - 10-Speed Automatic Transmission – 10R8..
