Ford Explorer: Police Equipment / Removal and Installation - Lighting and Siren Control Module

Ford Explorer 2020-2024 Service Manual / General Service Information / Police Equipment / Removal and Installation - Lighting and Siren Control Module

Removal

NOTE: Removal steps in this procedure may contain installation details.

Main lighting and siren module

  1. Remove the bolts and the loadspace floor panel.
    Torque: 16 lb.ft (22 Nm)

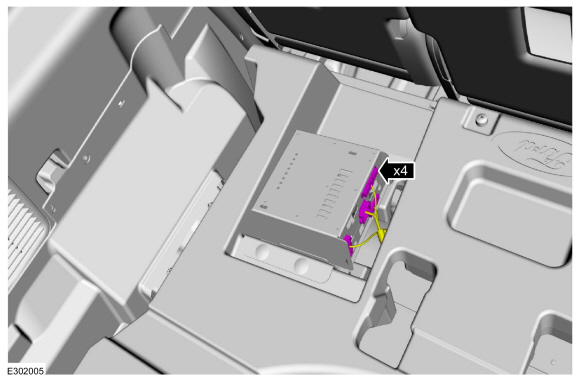

  1. Disconnect the lighting and siren control module electrical connectors.
  1. Remove the push pins and the lighting and siren control module and bracket assembly.
  1. Remove the nuts and bolts and separate the lighting and siren control module from the bracket.
    Torque: 71 lb.in (8 Nm)

Traffic control flashing LED (light emitting diode) control module

  1. Remove the bolts and the loadspace floor panel.
    Torque: 16 lb.ft (22 Nm)

    1. Disconnect the electrical connector.
    1. Remove the bolts and the traffic control flashing LED control module
      Torque: 44 lb.in (5 Nm)

Installation

  1. To install, reverse the removal procedure.
