Ford Explorer: Exterior Lighting / Removal and Installation - High Mounted Stoplamp

Ford Explorer 2020-2026 Service Manual / Electrical / Lighting / Exterior Lighting / Removal and Installation - High Mounted Stoplamp

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear spoiler.
Refer to: Rear Spoiler (501-08 Exterior Trim and Ornamentation, Removal and Installation).

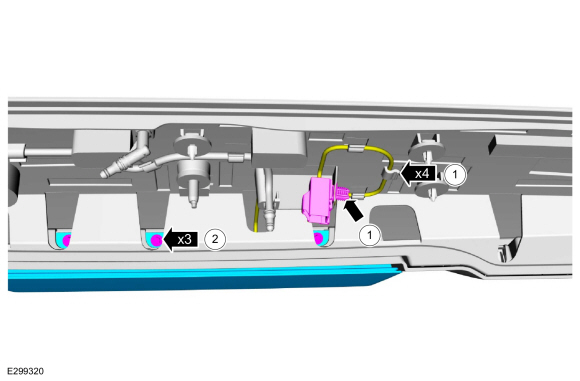

Remove the high mounted stop lamp.
1. Separate the harness connector and wiring from the spoiler.
1. Remove the screws.

Installation

To install, reverse the removal procedure.
