Ford Explorer: Exterior Trim and Ornamentation / Removal and Installation - Front Door Moulding
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH door shown, RH door similar.
-

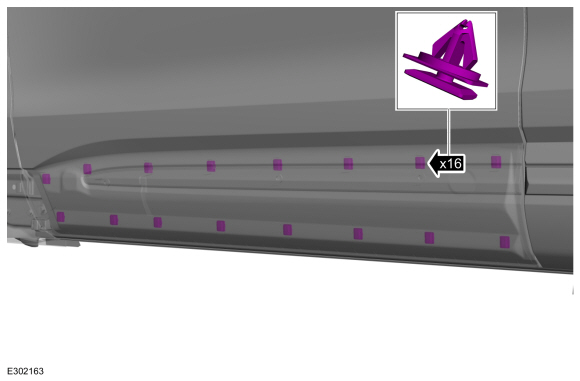

Using a non-marring trim tool, disengage the retainers attaching moulding to the door.
Use the General Equipment: Interior Trim Remover
-
Remove and discard the moulding.
Installation
-
To install, reverse the removal procedure.
